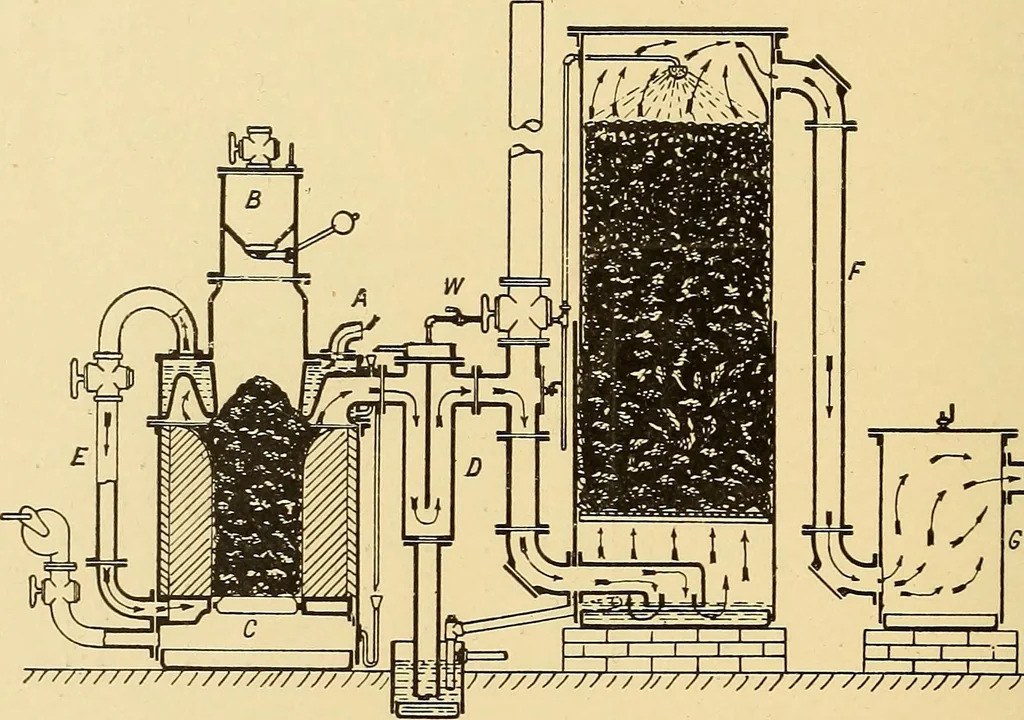

asproducer, and the heat necessary for vaporization is derivedfrom the heat of the fuel. This steam passes with the air downa pipe leading to the base of the gas producer, and is thendrawn through the glowing fuel which is maintained at atemperature of about 1,000° C. The air and steam on… … »] -»• To Engine. Fig 777777;///)//)/ 7777777 A///V/vVy j jj;;/j 54.—Sectional elevation of a 150 H.P. Campbell Suction Gas Pro-ducer. Fuel is first admitted through the hopper B. Air then entersat A, picks up steam on its way and passes by the pipe E to the grateC The gases come away from the…
