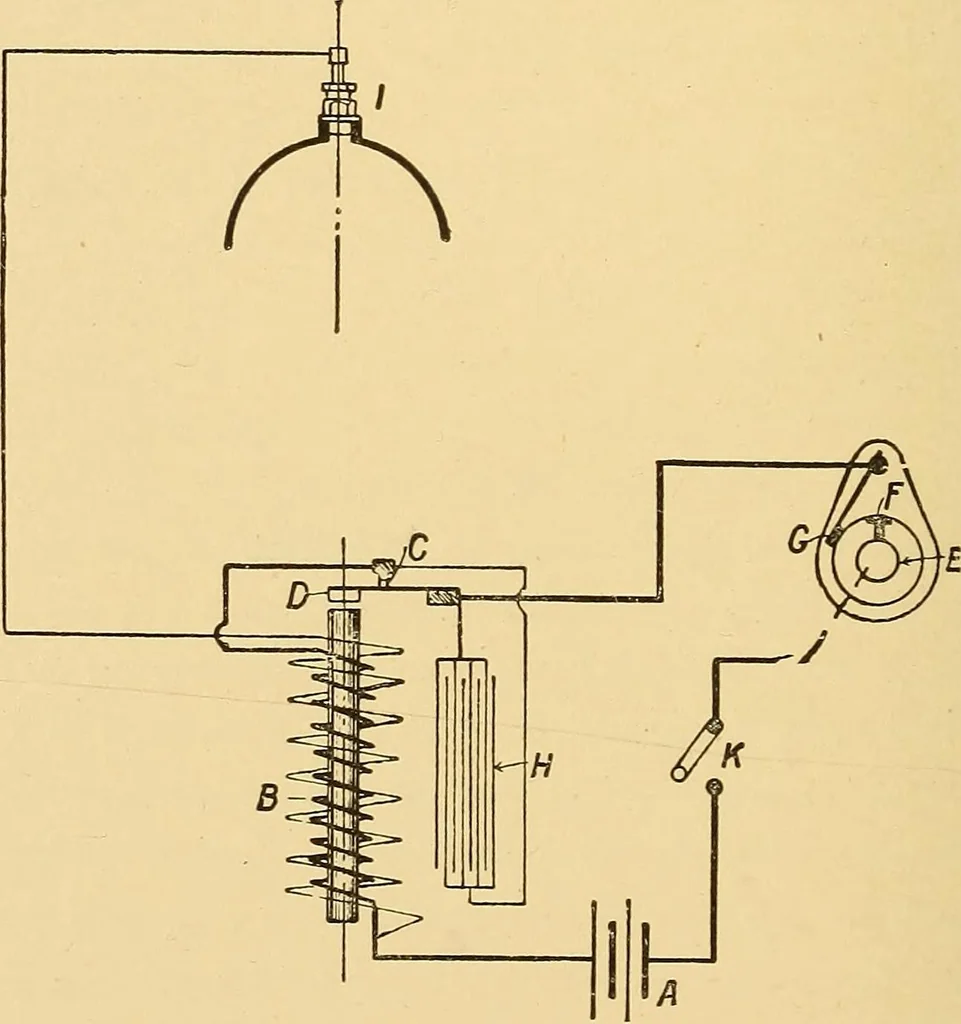

An illustration from The internal combustion engine; being a text book on gas, oil and petrol engines, for the use of students and engineers, 1909, leaf 295 — es by no means instantaneouslyand this leads to the make of the primary current,producing a much less vigorous spark in the secondarythan does the break. The break is almost instantaneous ;the only thing that tends to prevent it being so, is the energyof rush of the primary current which jumps over… … Fig 96.—Diagram showing mode of working of high-tension ignition withcoil and accumulator. A, Accumulator. B, Induction coil. C,Contact breaker. D, Trembler. E, Commutator on end of cam shaft,for closing circuit at right moment by bringing metal segment F againstthe brush G. H, Condenser, to make…
