The internal combustion engine; a text-book for the use of students and engineers (1915)
Wimperis, Harry Egerton, 1876- · New York, D. Van Nostrand company · leaf 124

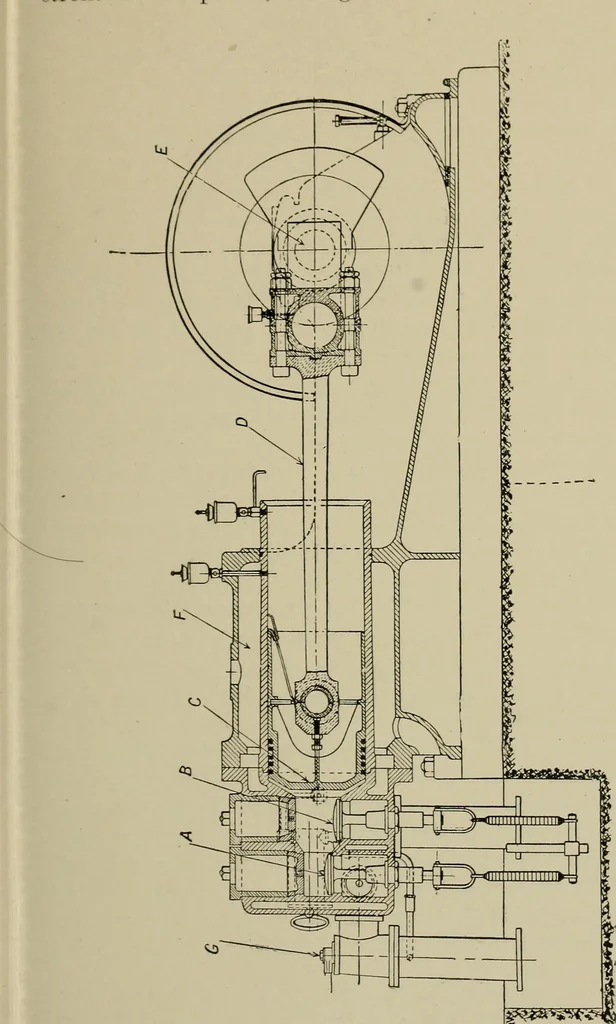

ce of thewell-known Otto cycle gas engine is shown in section in Eig.29. Gas and air enter through the casting G, and pass theinlet valve A (operated by cam arrangements not shown inthe figure). As the gas and air enter, the piston C movesalong the cylinder, being drawn by the connecting rod… … I a 3daH woS O © o o H 6 M 106 THE INTERNAL COMBUSTION ENGINE [chap, v expand doing work, and on the exhaust stroke the exhaustvalve B opens to allow them to escape into the silencer. Thecylinder is kept sufficiently cool, to enable it to be lubricated,by means of a circulation of water in the…Internal combustion engines
