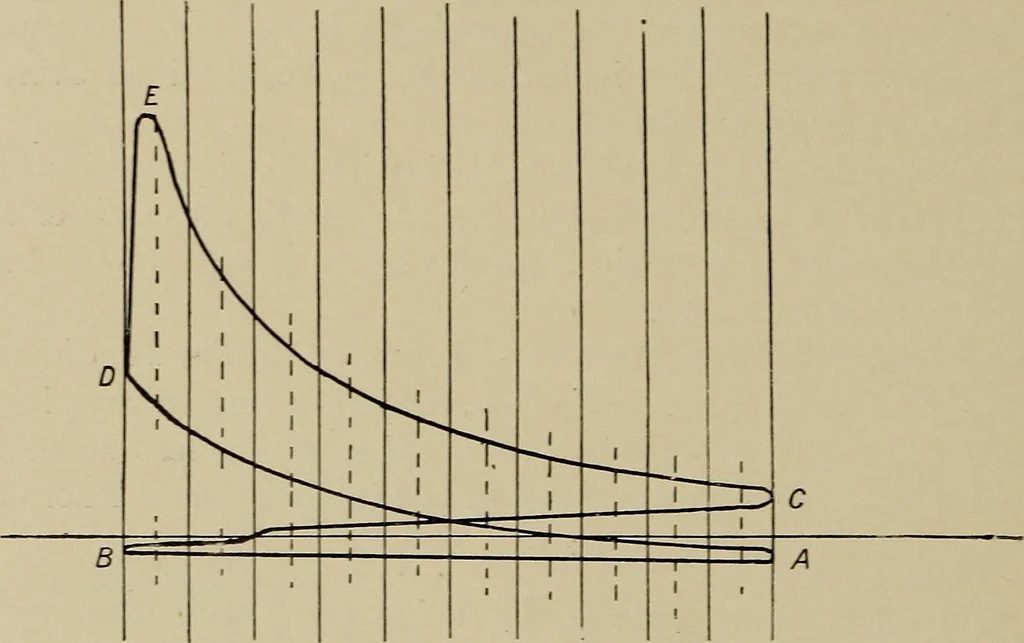

of these mid-ordinates arethen measured and their sum divided by the number of them. * In the case of a four-stroke engine it might at first sight seemdesirable to divide the average pressure over the two outward strokesand not on one of them only, but the accepted conventio n is that givenin the… … Fig. 41.—Obtaining Area by Mid-ordinate Rule. Area C D E counts aspositive ; area A B as negative. Mid-ordinate height of negative loopmust be subtracted from that of positive loop. 90. Effect of Engine Speed.—The Crosby indicator abovedescribed is well suited to gas engines running at normal
