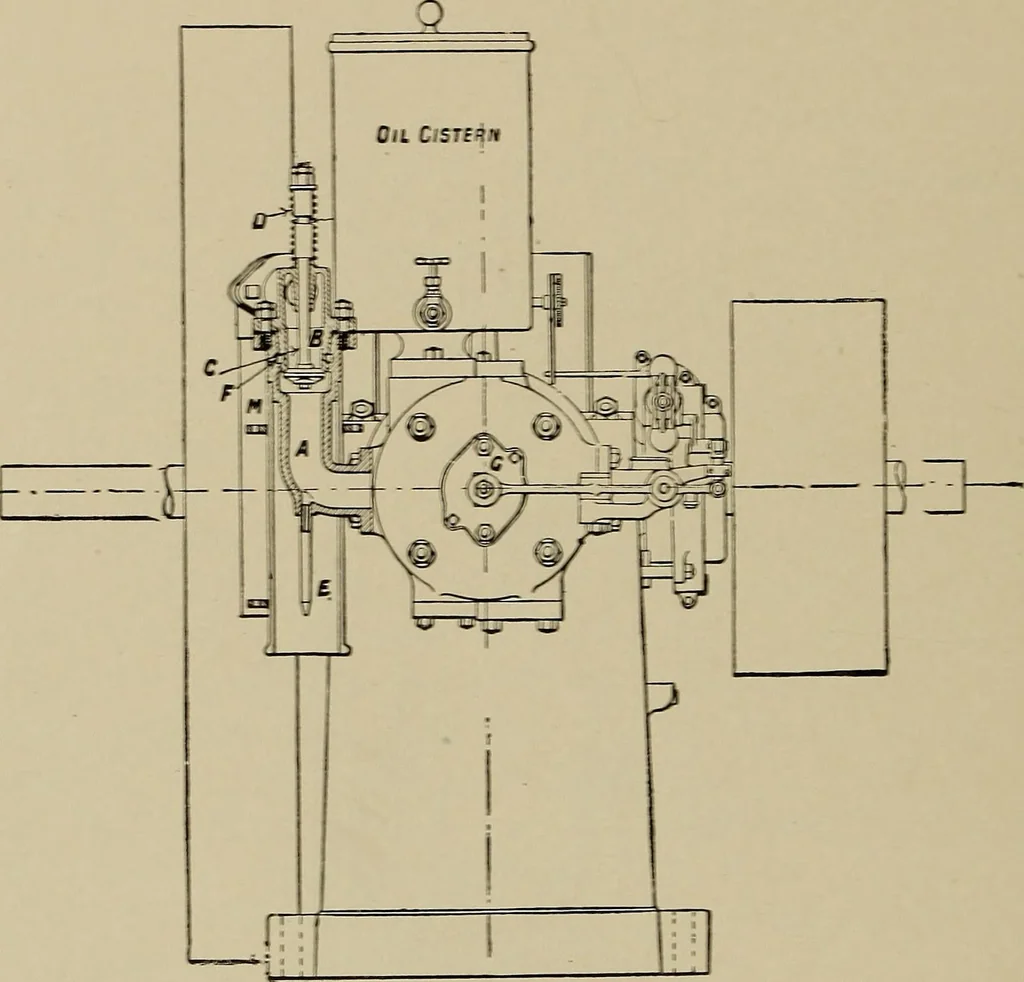

C 5b a u=. -h O 0 Oh Q 1 o bDO,4 +3 o «2 COCO 6 M ft 232 THE INTERNAL COMBUSTION ENGINE [chap, vin cylinder during the charging stroke of the piston because thereis free communication with the atmosphere through the ex-haust valve, and consequently no charge of oil and air canbe drawn into the… … Fig. 64.—Campbell Oil Engine., illustrating operation of vaporizer. cylinder and in direct communication with the combustionchamber. Into the top of this chamber the inlet valve plugB is fitted and this plug contains the seat of the inlet valveC [see Fig. 63). The inlet valve C is kept closed by a…
