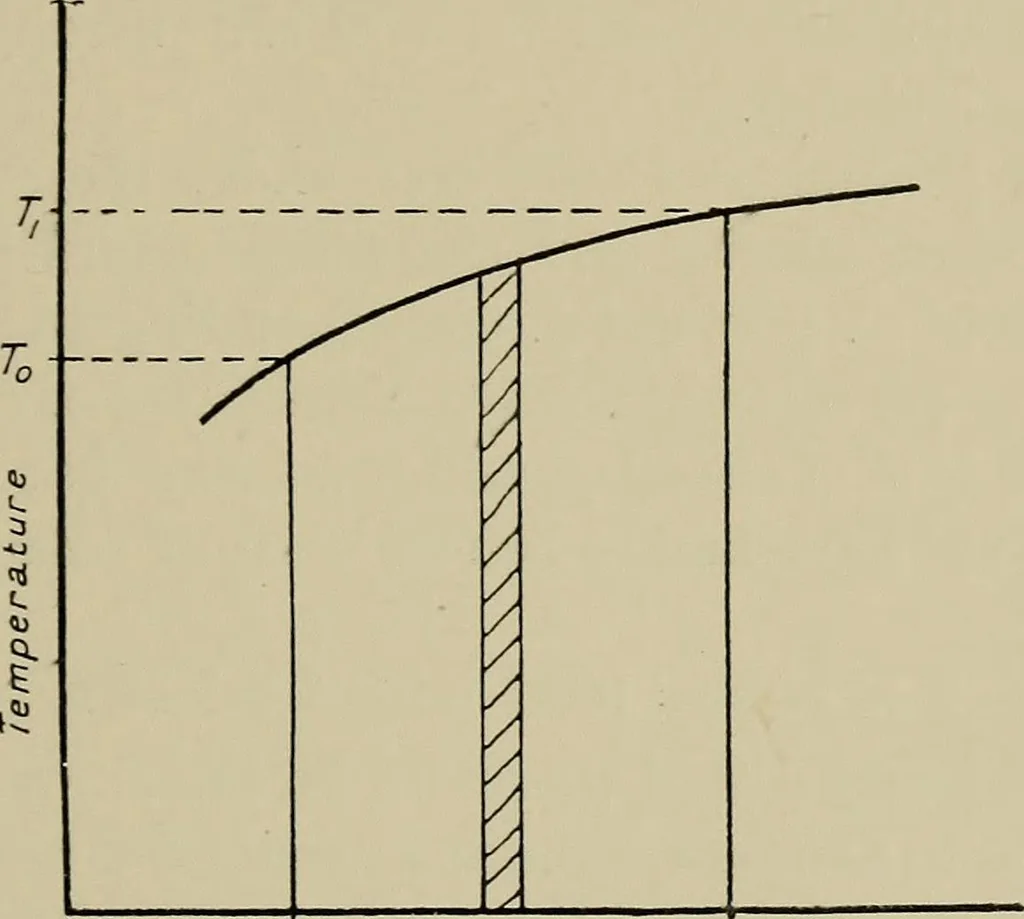

o V^ Proof.— Area of shaded strip = P. AV, which is work doneby pressure in increasing volume by AV. Therefore totalwork done = 2P. AV for all such strips (or in calculus nota-tion, I P.tfV) which is the area under the curve. It is this principle that enables the work done by an engineto be… … fy0 Entropy <^ Fig. 6.—T0 diagram. curve to show, not work done, but heat units supplied to thegas. The question arises, what, in this case, is to be plottedalong the X axis ? The answer to this question is that thequantity to be plotted along the X axis is not one like pressureand volume with…
