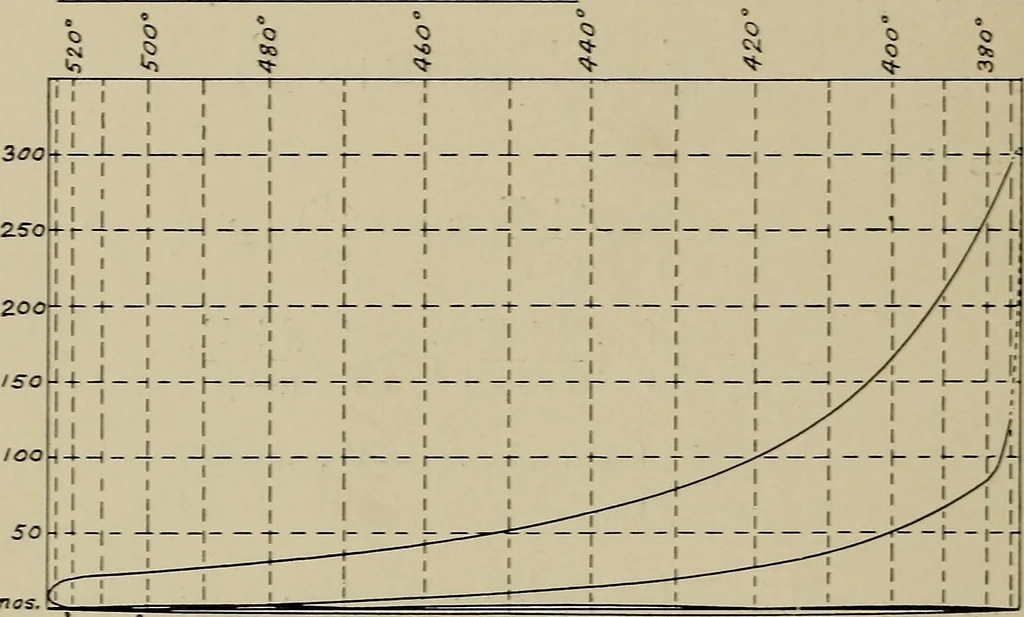

(2). As before, take the case where, as in compression and expan-sion, PV = constant, very nearly.Then V—=-nP, dV 72 THE INTERNAL COMBUSTION EXGIXE [chap, ivand substituting in equation (4) d\ c—l a—p I or r/V I c—l ft— g I (5) which becomes equal to equation (3) if s = 0. Equation (5) shows that —… … <3 cs 0 NO CS 0 CM 0 o O CRANK ANGLE COMPRESSION SIDE Fig. 23.—Indicator diagram analvsed in Fig. 23a. (It is Fig. 5 of the 7th Report of G.E.C.) Mr. Hogg has applied this method of analysis to an indica-tor diagram taken with a reflecting indicator by Prof. Dalbyand reproduced in Fig. 23. The…
