International marine engineering (1906)
New York : Simmons-Boardman Pub. Co. · leaf 333

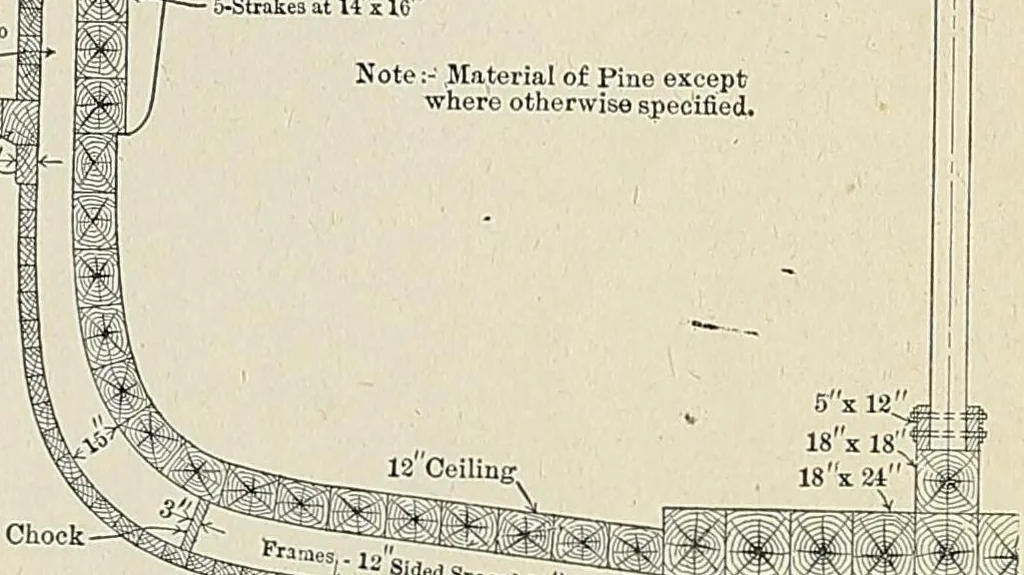

e deadwood is of pine, molded to take the heel of the cant frames. Sey, : SES: The frames are of pine, sided 12 inches and spaced 32 Z o © 5 exsia inches centers, and in the wake of the house they are car- 10"x 15” ED) ried up to the upper deck. The ceiling is 12 inches thick 14'Knee at Hatches Fs… … ~e AS The clamps are 14 by 16 inches and average 60-foot names - 12 Side SONNE: ) | SEE lengths, keyed with 4-inch oak keys in the scarphs. The S5 THWARTSHIP SECTION AT FRAME NO, 39 deck beams are of 16 by 16-inch pine spaced 2 feet ro (ABOUT) ; inches and crowned 7 inches, except in the wake of…Shipbuilding -- Periodicals · Shipbuilding industry -- Periodicals
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
