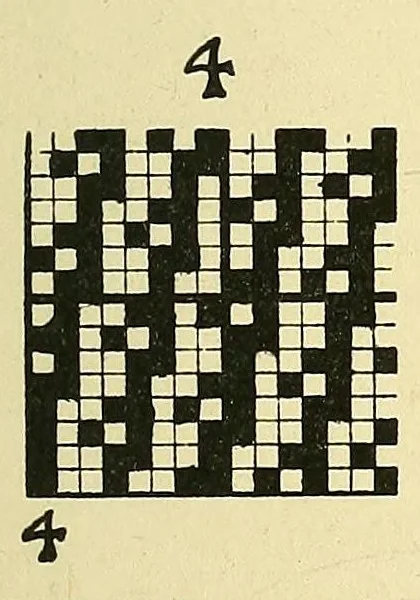

DESIGNING OF INTERLACINGS 12' Ordinary sateen twills must be based upon a sateen presenting a twill at the ordinary angle (45°). Thus in Design Sheet 16, No. i, the 8-sateen is the basis, being modified into the Mayo twill and twilled hop-sack. The following order of construction has been adopted :… … DESIGN SHEET I5B. — ILLUSTRATIN'G ALL POSSIBLE REARRANGEMENT OF A 15-THREAD TWILL (The number at the left-hand corner of each design is the number counted) 3. Taking the direction of twill giving 45°, convert, by addition, into any style of weave required, in twill form. Upright sateen twills are…
Textile design
