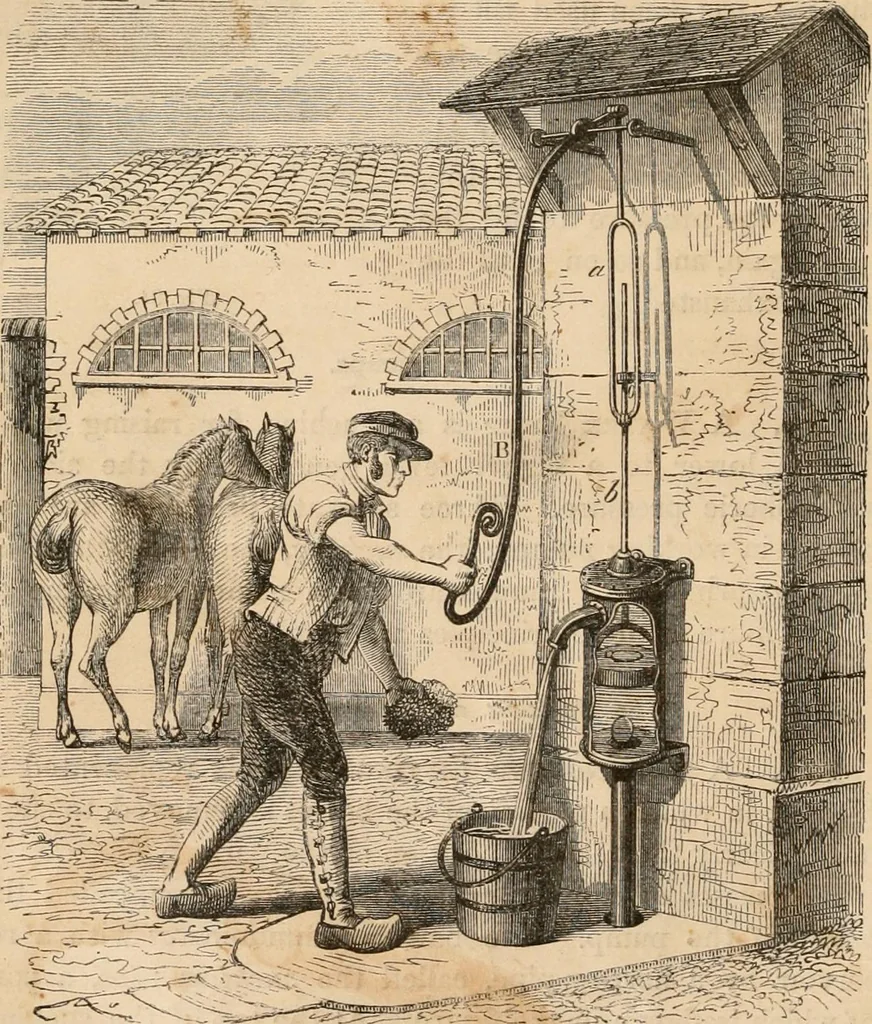

led the piston. The piston is attached to a rod,b, called the piston rod, and is moved up and down through ( 134.) What is a Water Pump? How many principles may be employed ? Whatare they? How are pumps named? (135.) Describe the Sucking and LiftingPump. Its barrel. Sucking pipe. Sleeping valve.… … Fig. 95. which is united to the piston rod by a hinge joint. Thisarrangement permits the rod, b, to glide up and downthrough a guide, as shown in the figure. Finally, the piston Play of the piston. Piston rod. Guide. PUMPS AND OTHER MACHINES. 141 itself is pierced in its centre, and carries a…
