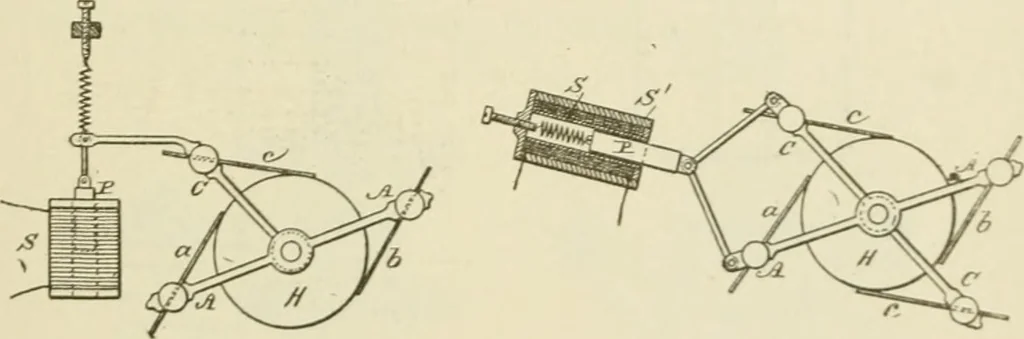

is the com-mutator ; B and b, the brush-holders, b carrying the mainbruslies a a , and b the auxiliary or shunt brushes h h. Theaxis of the brush-holder b is supported by two pivot-screws, 7; ^>.The other brush-holder, b, has a sleeve, rZ, and is movablearound the axis of tlie brush-holder b. In… … Fig. 264. Fig. 265. also affords a support for the pivots jPjy, and is fastened upon asolid bracket or projection, p, which extends from the base ofthe machine, and is cast in one piece with the .same. Thebrush-holders b b are connected by means of the links e eand tlie cross-piece f to tlie iron…
