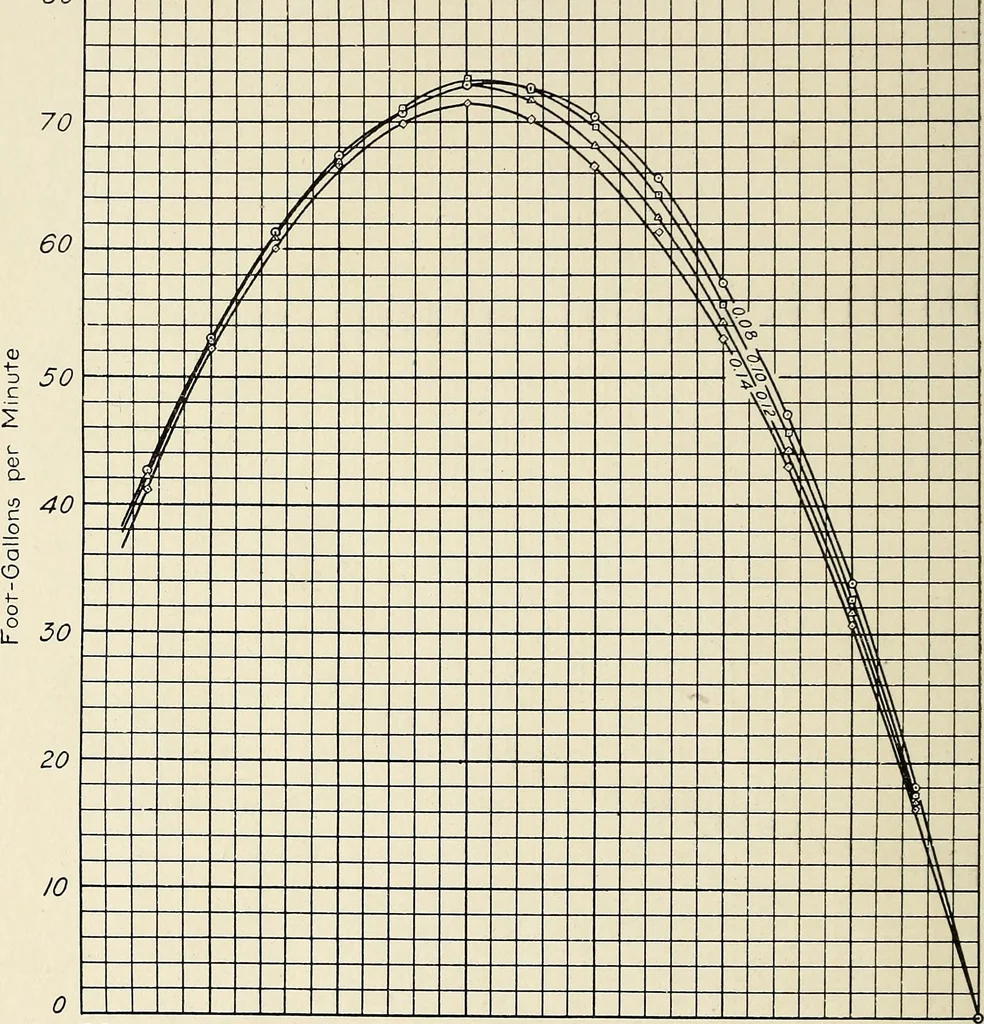

ained for eachfive per cent, submergence. These quantities were then multi-plied by the lift in feet for the corresponding submergences.This gave the work output, expressed in foot gallons, for eachfive per cent, submergence. In order to avoid confusion, partof the curves, those for the rates of… … 50 40 50 60 70 80 90 100 Submergence in Percent Fig. 24.—Relation of Output to Percentage of Submergence.—Series 1. Beyond that limit the output is negative on account of the liftbeing negative, and the curve extends in the general directionindicated by the part near the 100 per cent, submergence…
