Detroit Stove Works · Detroit : Detroit Stove Works · leaf 205

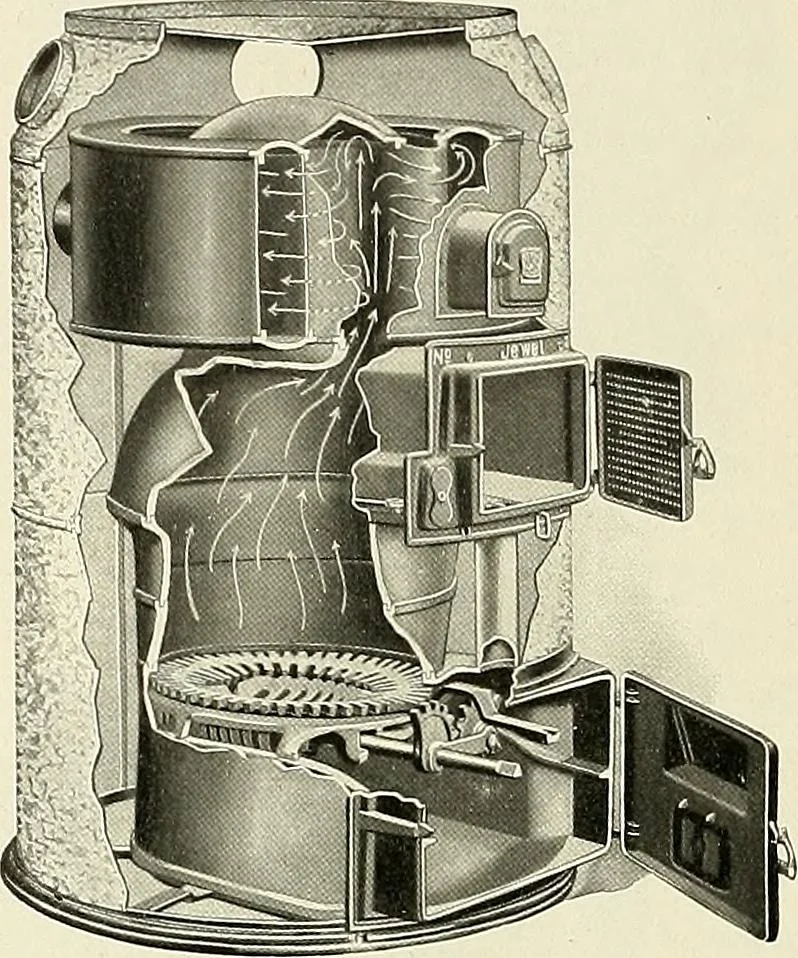

rays of heat. Jewel combustion domes are in correctproportion to the other parts of the furnace; hence perfect results are obtainable. Notice the small ash pit, the slanting firepot, the small radiator and cramped com-bustion dome of the other make of furnace. If you could set these furnaces side… … Details of Jewel Furnace Construction The above cut correctly illustrates the details of Jewel Furnace construction. Noticethe large roomy ash pit with its extra large door. Notice the grate, how strong and simplethe construction; made without the use of a bolt or rivet. How easily it can be…
Detroit Stove Works · Stoves
