Detroit Stove Works · Detroit : Detroit Stove Works · leaf 206

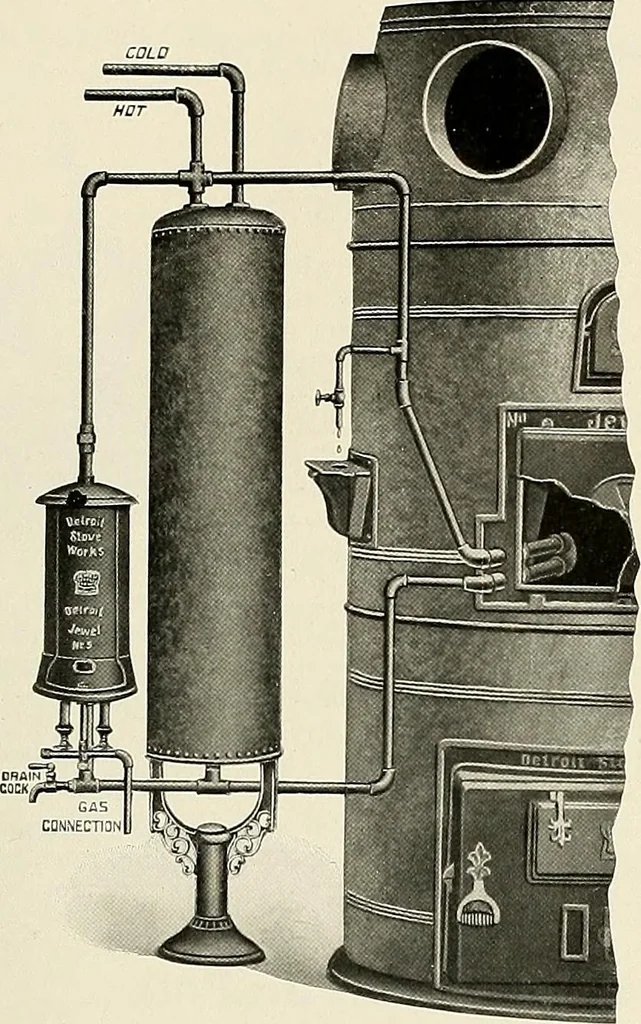

ire, exposing a large areaof self cleaning radiating surface to the direct action of the fire. Notice the large freeopening of the flues of the radiator. Notice the absence of down drafts, abnormalindirect surface and other impractical features which affect combustion and detractfrom rather than… … ShowingJewel Vapor Panand Water HeaterConnected Notice how water can besupplied, a drop at a time. An especially important feature in Jewel construction, which is generally overlookedby the makers of other furnaces and is entirely ignored by boilermakers, is provisionfor constantly maintaining the…
Detroit Stove Works · Stoves
