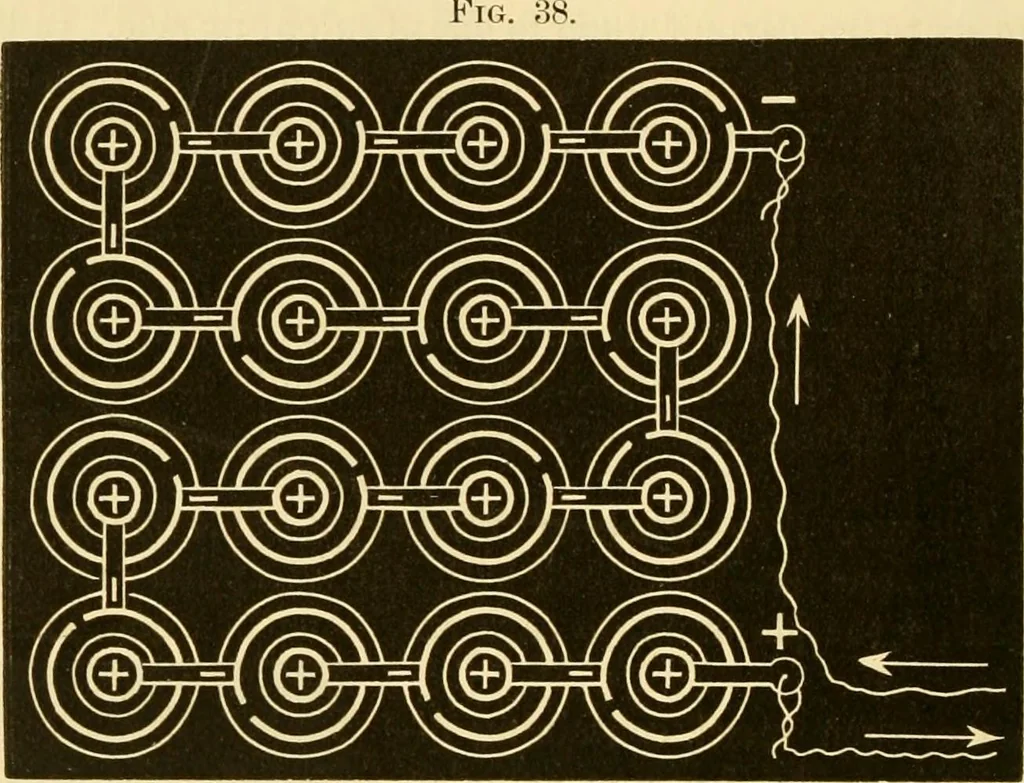

TRICITY The carbon is the positive and the zinc the negative pole of the couple.The positive fluid, therefore, passes from the carbon to the zinc. 740- Figure 38.—Batteries of t-wo or more couples.— Any number of couples may be united by attaching the copper strip ofthe zinc cylinder in one couple… … Such a combination is shown by the figure, consisting of sixteencarbon batteries, the view being from above, looking down upon thecombination. The outer circle of each couple represents the outer vessel; the nextcircle, the zinc; the next, the vessel containing the acid; and thecentral circle, the…
