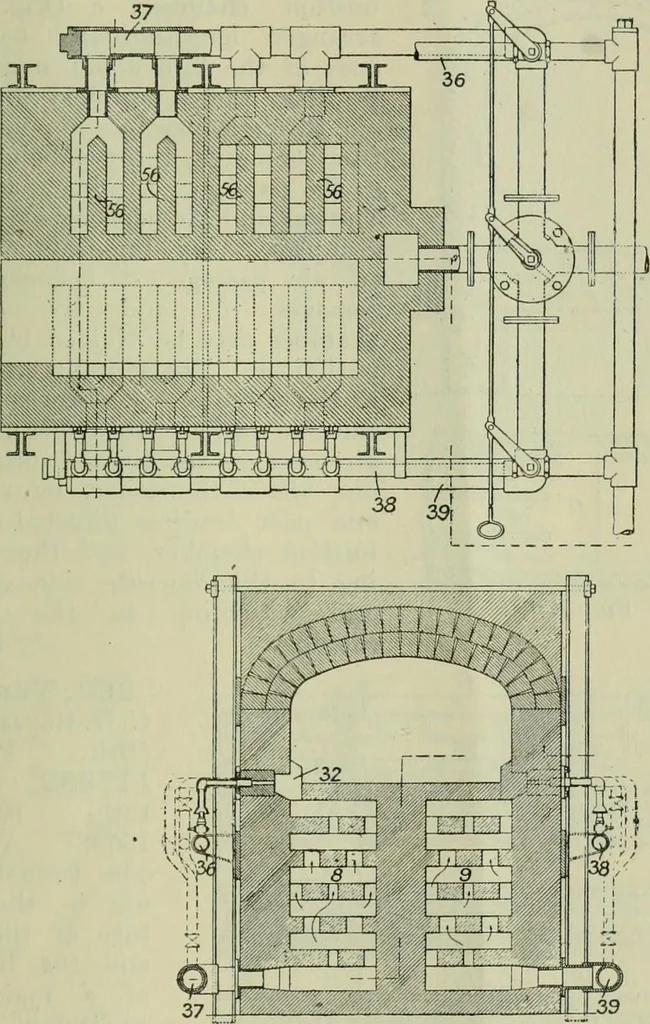

Fig. 116. Fig. 117. FUELS, REFRACTORIES, AND FURNACES. 195 pressure through the regenerators 8, 9, alternately, the regeneratorsbeing arranged beneath the floor of the furnace chamber. Fig. 117is a similar view of a furnace with the regenerators at the endsof the furnace. Figs. 118 and 119 are more… … Fig. 119. air is supplied under pressure through the regenerators 8, 9,alternately, from pipes 37, 39, by means of reversing valves. Theburners deliver into spaces 32 at the level of the floor of thefurnace chamber, into which the heated air from the regeneratorsis delivered. The waste products of…
