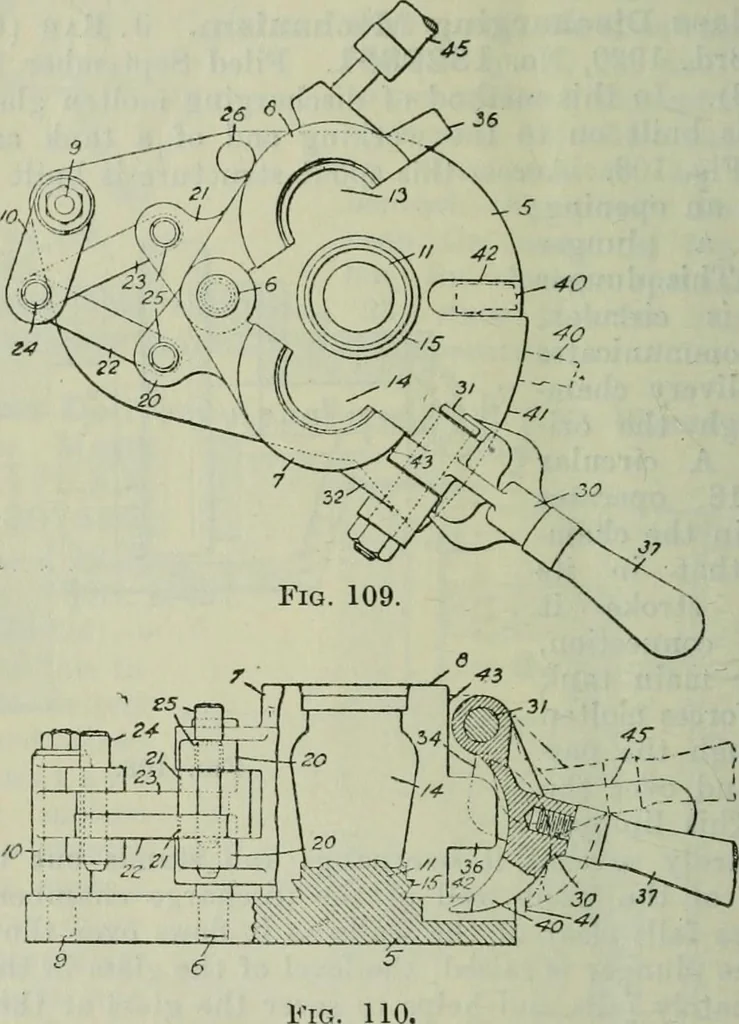

he two halves of the mould in the open position. Themould sections 7 and 8 are hinged on a stud, 6, which is securedto the base plate, 5. The closing movements of the mould sectionsare controlled and made substantially equal by the links 22 and 23,which are connected to the mould sections by means… … handle serves the double function of opening and closing the mouldsections, and of clamping them together in the closed position. Forits clamping function, the handle is provided with arms, 34,having bevelled inner faces, which engage the opposite outer sidesof the lugs, 35 and 36, projecting from…
