Society of Glass Technology · [Sheffield] · leaf 709

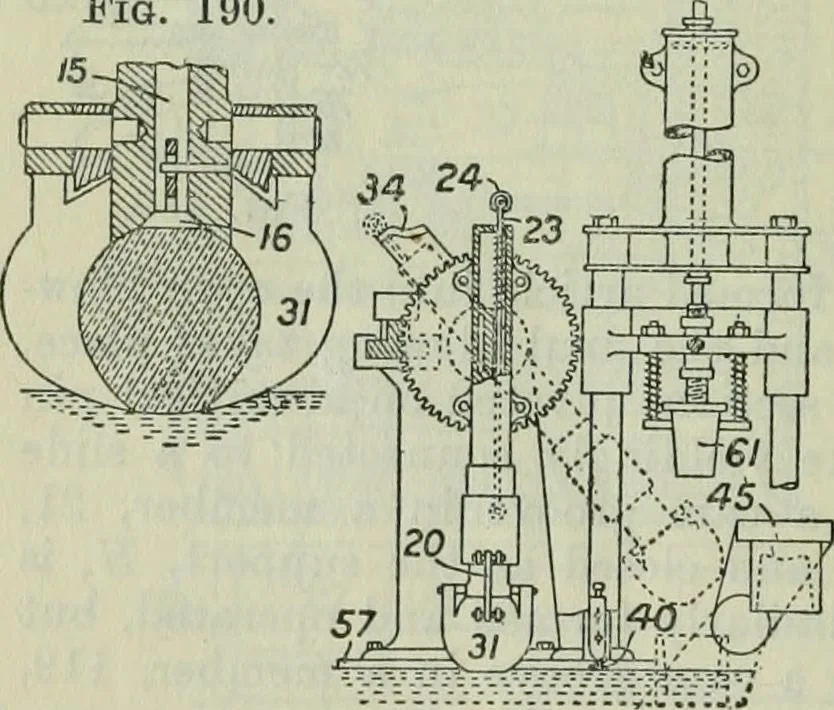

ow the metal to fall into it. The cup,31, is opened by a rod, 23, which is connected by links, 20, withthe halves of the cup, and is provided with a roller, 24, whichstrikes a fixed cam, 34. The plunger, 61, then descends to pressthe ware, which is later discharged by the inversion of the mould.The… … Fig. 191. MACHINERY FOR THE WORKING OP GLASS. 227 parts, including the fluid-pressure-operated plunger, 61, are con-trolled by fixed cams in the usual way. H. G. C. 336. Automatic Machine for Blowing Electric LampBulbs. E. Lecoultre, Paris (Brit. Pat. No. 137544. January9th, 1920, No.…
Glass
