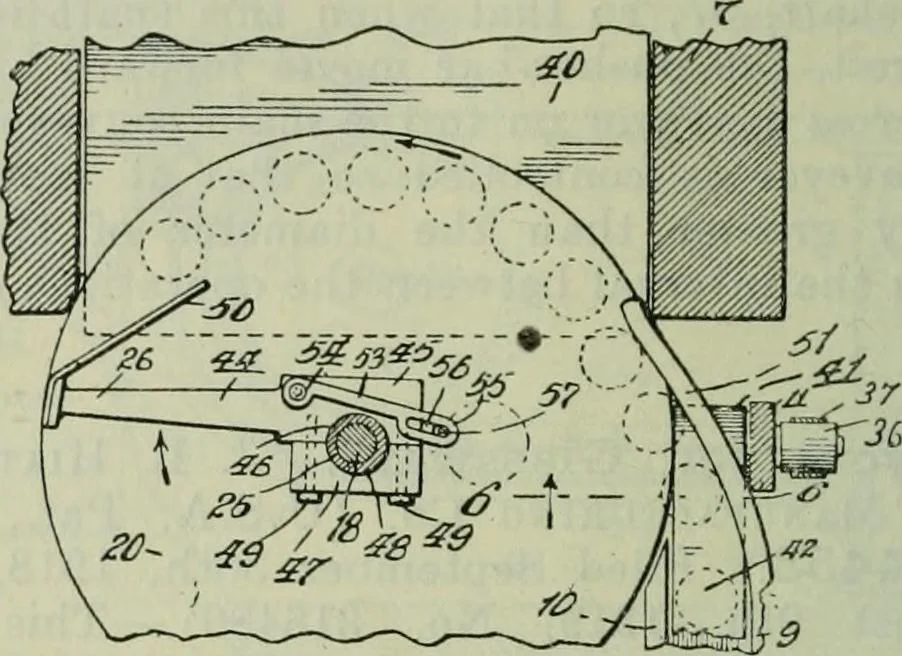

the conveyor belt, which carries ittowards the table, and the transfer to the table is made by thecurved portion, 51 (Fig. 206), of the guide bar, 9. As the circum-ference of the disc, 20, has a slower speed than the belt, 42, theglass articles as they are transferred to the disc are packed… … Fig. 206. operated at intervals by the lever, 53, which is secured to the arm,44, at 54. At its other end is a link, 56, tErough which passes astud, 55, attached to the disc, 57. As this disc rotates, the bentbar, 50, sweeps over the table, pushing the glass articles off intothe lehr, and then…
