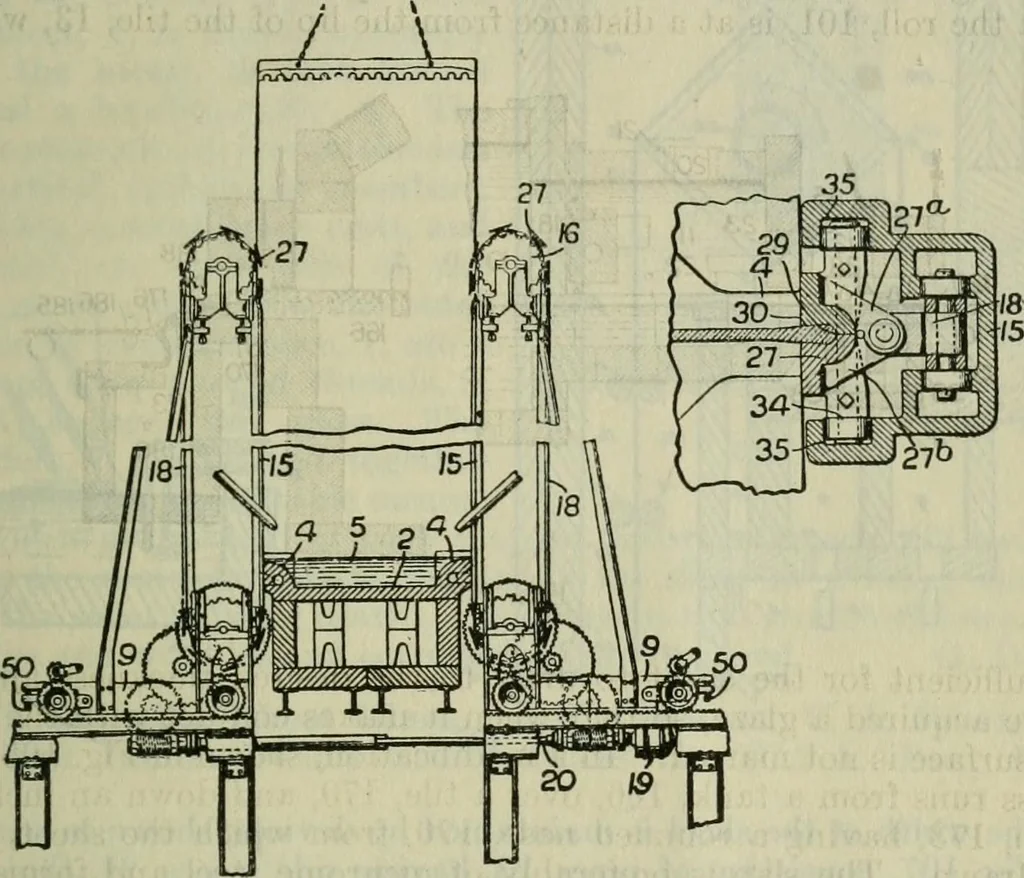

ds close to MACHINERY FOR THE WORKING OF GLASS. 149 the lips, 4. The frames, 15, are mounted on wheeled trucks, 9,which may be moved to and from the pot, and one of them carriesa motor, 19, which drives a shaft, 20, that transmits the drive tothe chains. Each chain, 18, as shown in sectional plan… … Fig. 10G. member having a longitudinal channel, 29, which is narrower atthe end, 30, that runs close against the lip, 4. Guide rollers, 34,in the sections run in channels, 35, in the frame, 15, these channels,35, being so arranged as to guide the sections and keep them closedon the vertical runs,…
