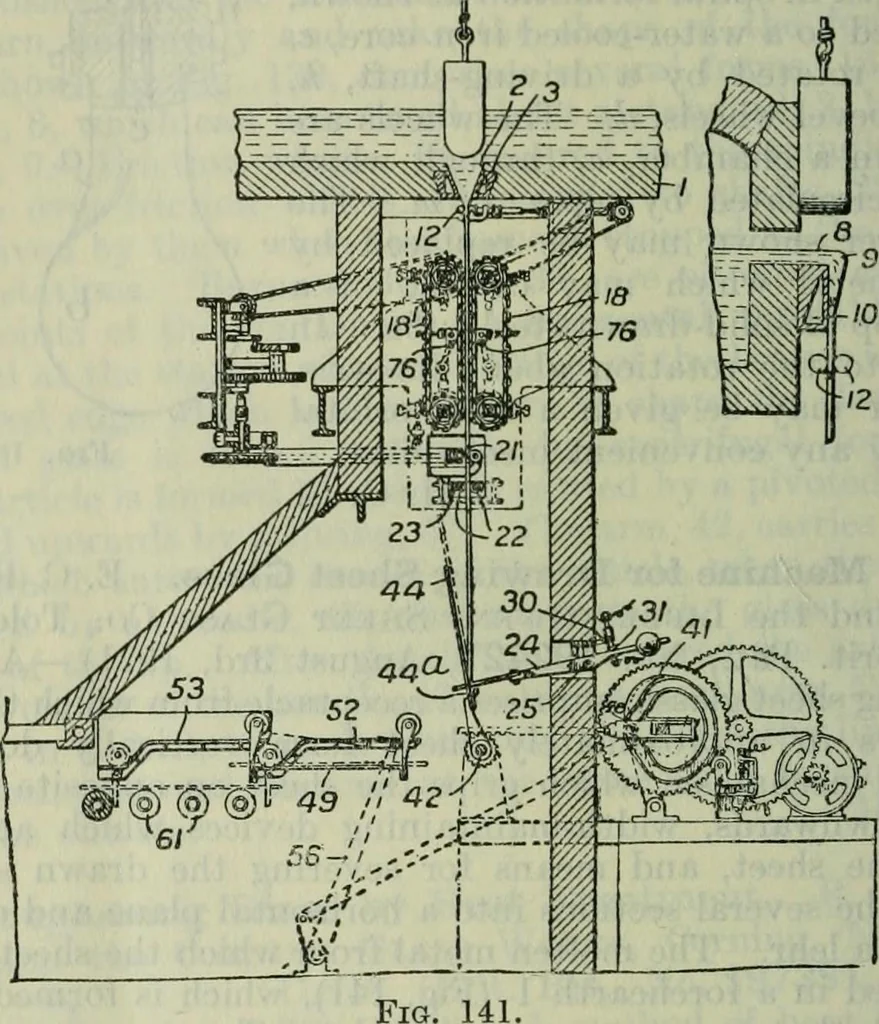

with ledges, 44a, for receiving the lower edge ofthe descending sheet. A counterbalanced lever, 24, pivoted at,25, projects into the path of the sheet and is thus depressed as thesheet descends. At a particular point, the lever closes contacts30, 31 in the circuit of the motor, and the motor thus… … on a carriage, 49. This carriage is moved forwards along rails,52, 53, by a lever, 56, oscillated by the motor, and deposits thesection on lehr rollers, 61, which feed it into the lehr. In a modi-fication, the carrier, 44, is made up of tubes which are secured tothe shaft, 42. The tubes are…
