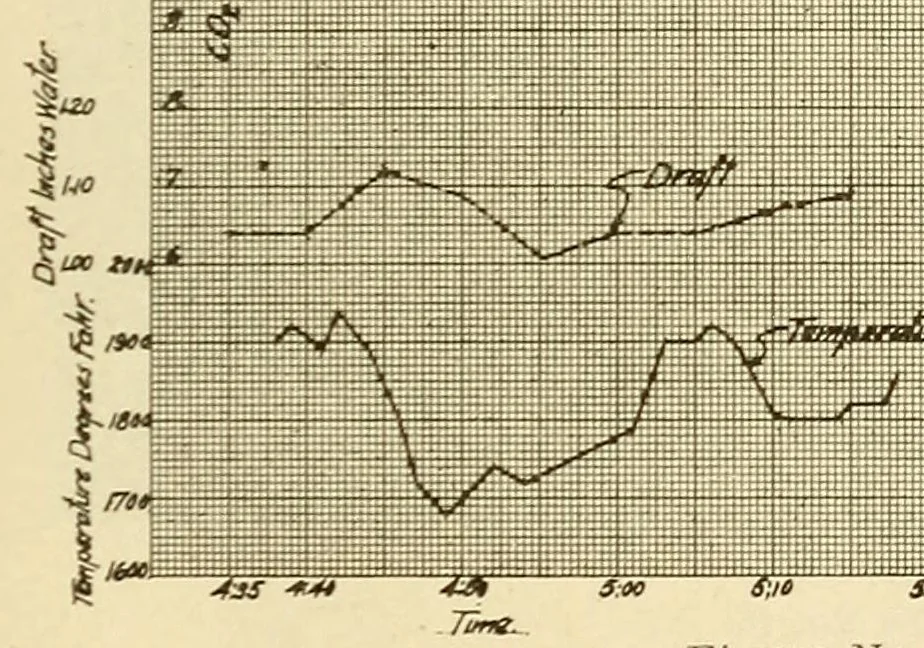

having 228 3^ in. tubes. 18 ft. long. They are rated at about 410 h. p. and are equipped with Green Chain Grate Stokers. A large self-supporting steel stack serves all boilers. The connections from the stack to boilers are made through two overhead breechings each carrying four batteries of two… … Turtt. Figure No. 14 about 6:00 a. m. and 4:00 p. m., the fires under all boilers are banked. When the fires are brought out of bank, dense smoke is produced for a considerable length of time. This smoke is particularly noticeable in the afternoon. At their request, the Department undertook to…
