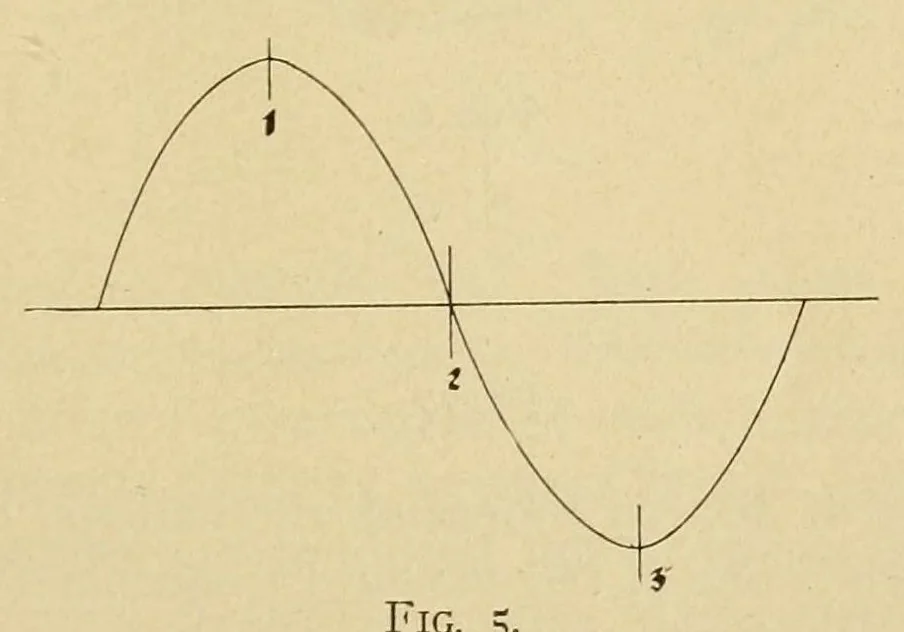

s position the loop is cutting these lines of force at the maximum rate of speed, and therefore generating its maximum pressure. As the plane of the loop revolves toward a position at right angles to the lines of force the rate of cutting decreases, and when the horizontal position is reached, as… … Fig. 5. currents of opposite sign to those in Fig. i, as indicated by the arrow-heads. It is apparent that a loop so revolving generates a pressure and also a current wave which changes sign as the cutting, relative to the direction of the lines of force, is changed, rising slowly from zero to a…
