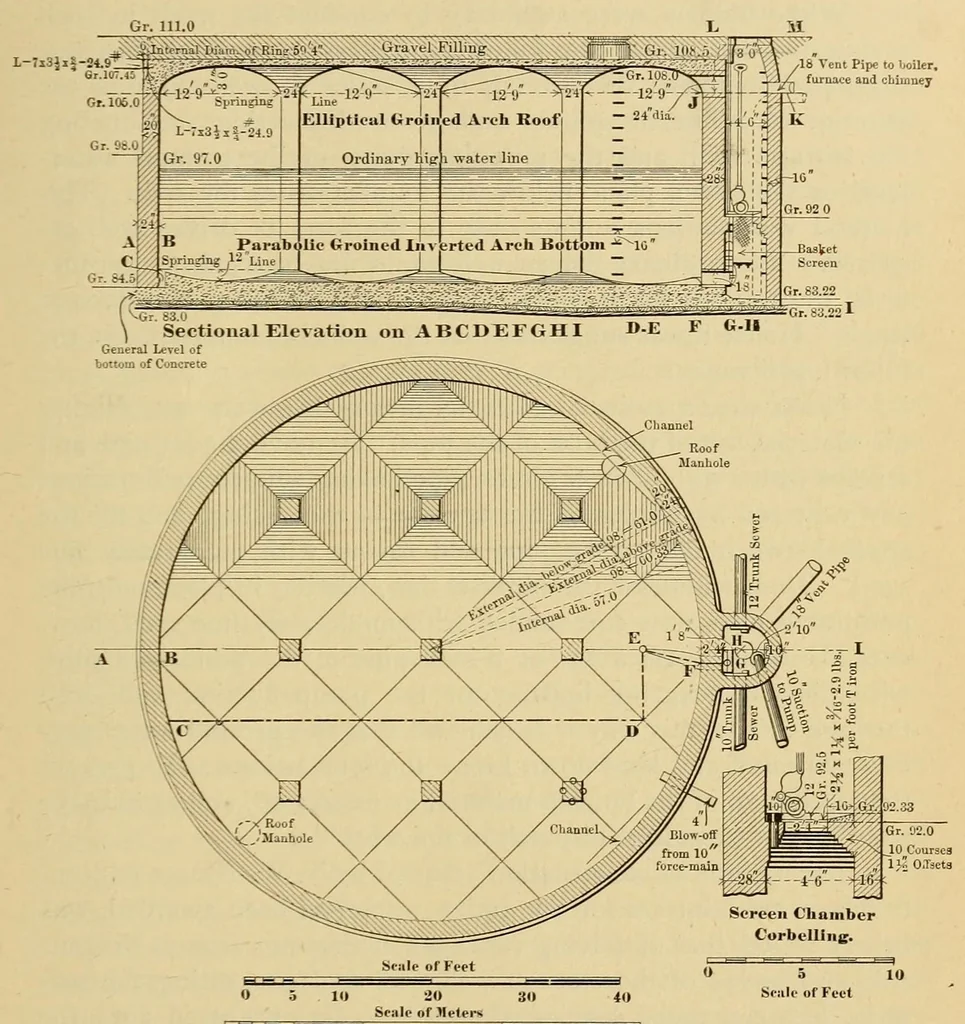

DIFFICULTIES IN BUILDING STORAGE WELL. 279 river, was about 250,000 gallons. Manholes were also provided in the roof, for access to the inside of the well, and an 18-inch vent pipe leading to the boiler furnaces, with by-pass in the chimney. … Scale of Meters Fig. 1. Storage Well and Screen Chamber. Storage Capacity, Gr. 84. S to 97.0 = 29,675 cu. ft. = 222,000 U. S. gallons. Emergency " " 84.8" 105.0 = 49,953 " " =373,000 " Capacity per foot of depth = 2,535 " " = 19,000 " Net area Storage Well = 2,515.8 sq. ft. " Screen Chamber = 19.2…
