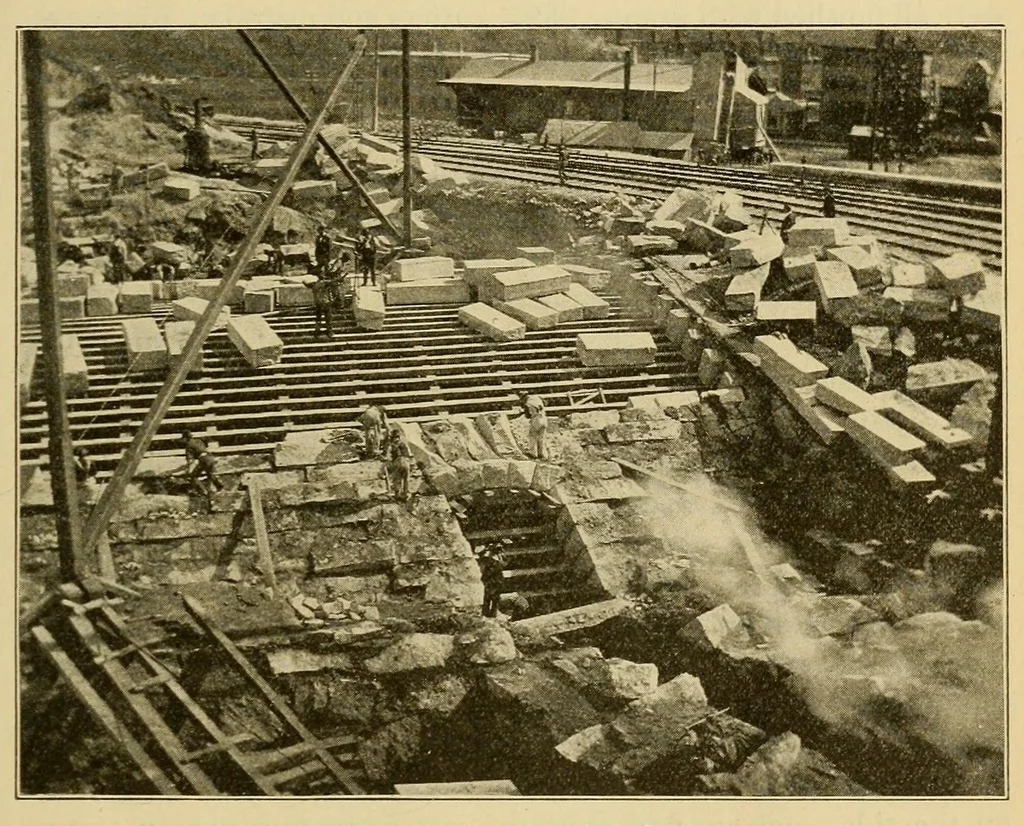

ning and of the partially-constructed arch. The westerly face of the arch was constructed at an angle of 'j'j° 52', and the easterly face at an angle of 61° with the axis of the arch, with necessary spandrel face walls capped with a dressed coping. Milton street was carried over the Providence… … Fig. 14. Hyde Park Avenue Arch, under Construction, Readville. were on a grade of 5 per cent., the rest of the westerly span being level, and there were vertical angles in the girders about 12 feet west of the pier, a somewhat unusual construction. The abutments were plumb on the face, the wings…
