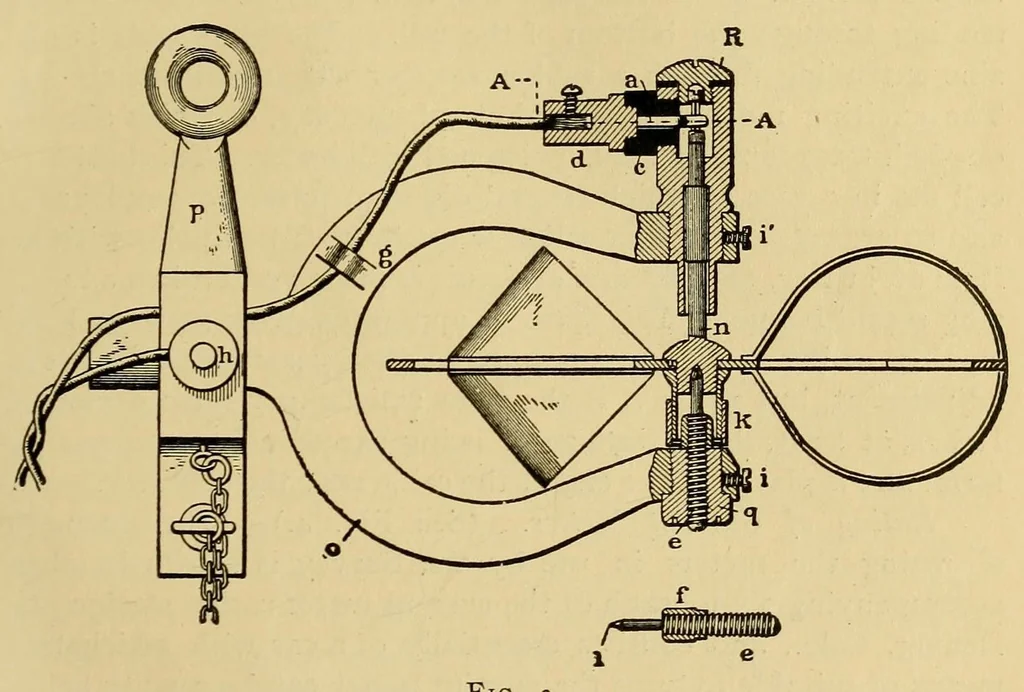

small meter. The cable is attached to the meter by a spring snap hooked into the smaller end of the trunnion, and the heavy copper wires are connected to the meter binding posts h and d by smaller and more flexible wires, arranged loosely to permit the meter swinging freely in a vertical plane. The… … Fig. 3. additional vane to hold the meter and keep it pointing up stream. It is to be noted that the Price meter turns upon a vertical axis, and the greater part of the bearing comes on the lower point, which is adjusted by the thread at the end, and held in place by means of the circular nut q.…
