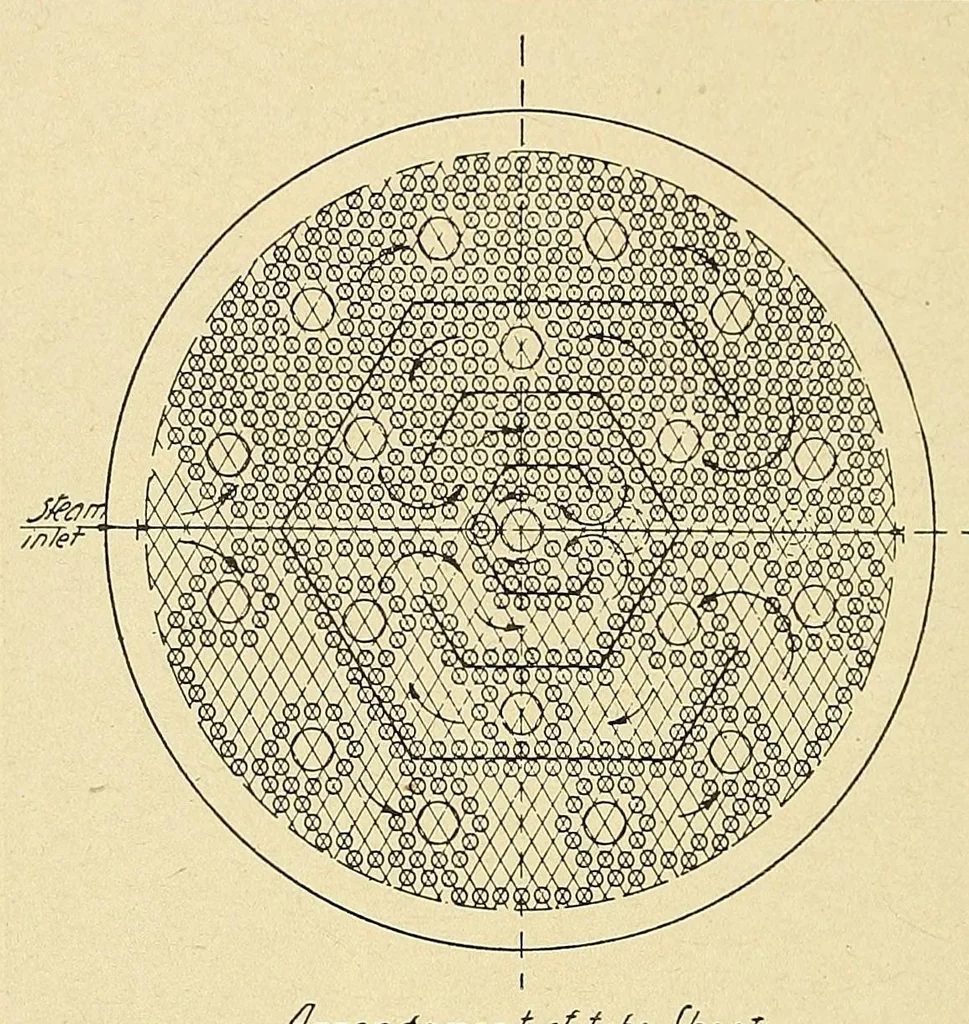

92 ASSOCIATION OF ENGINEERING SOCIETIES. purging the heating surface of air and other non-condensible gases as fast as they accumulate. As will be seen by Fig. 3, our arrangement consist of a series of concentric baffle plates in- serted between the tubes on the steam side providing a twin … /ir ran dement of /a3e JheeTj ana £a/f/t? \P/a/ej Figure 3. continuous path of progressively reducing cross-section within the heating surface, through which the heating medium is made to travel at a relatively high velocity, driving all the non-con- densible gases to one point from which they are…
