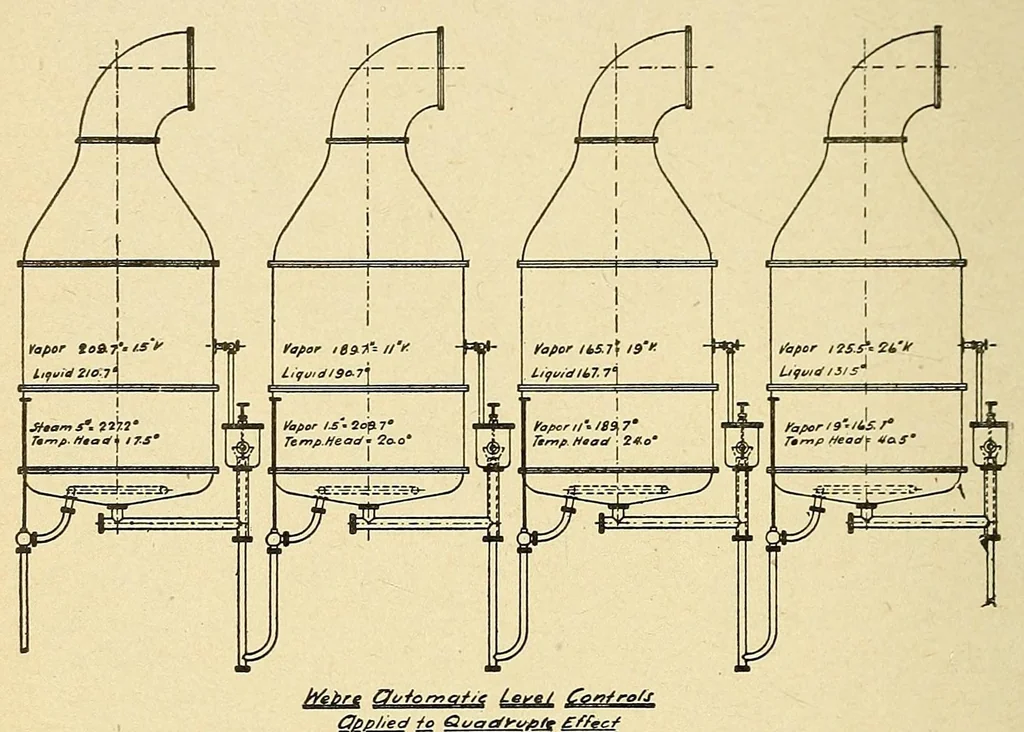

100 ASSOCIATION OF ENGINEERING SOCIETIES. paratus is its simplicity. There are no floats, it works simply by gravity, and can be cut out by closing the equalizing valves, enabling the operator to feed by hand, if this is desired. Fig. 10. We submit for your consideration the estimated temperature… … Oggheg to Qvae/hi/jB/t effect Figure 10. though it corresponds very closely with present practice, and is as follows : Quadruple Effect. Bodies 12 3 4 Boiling Temp, loss 1.0 2.0 1.0 6.U Static Head loss 1.0 1.5 2.0 7.0 Viscosity Loss .5 1.0 8.0 2.0 Working head 15.0 16.5 18.0 19.5 Total Head 17.5…
