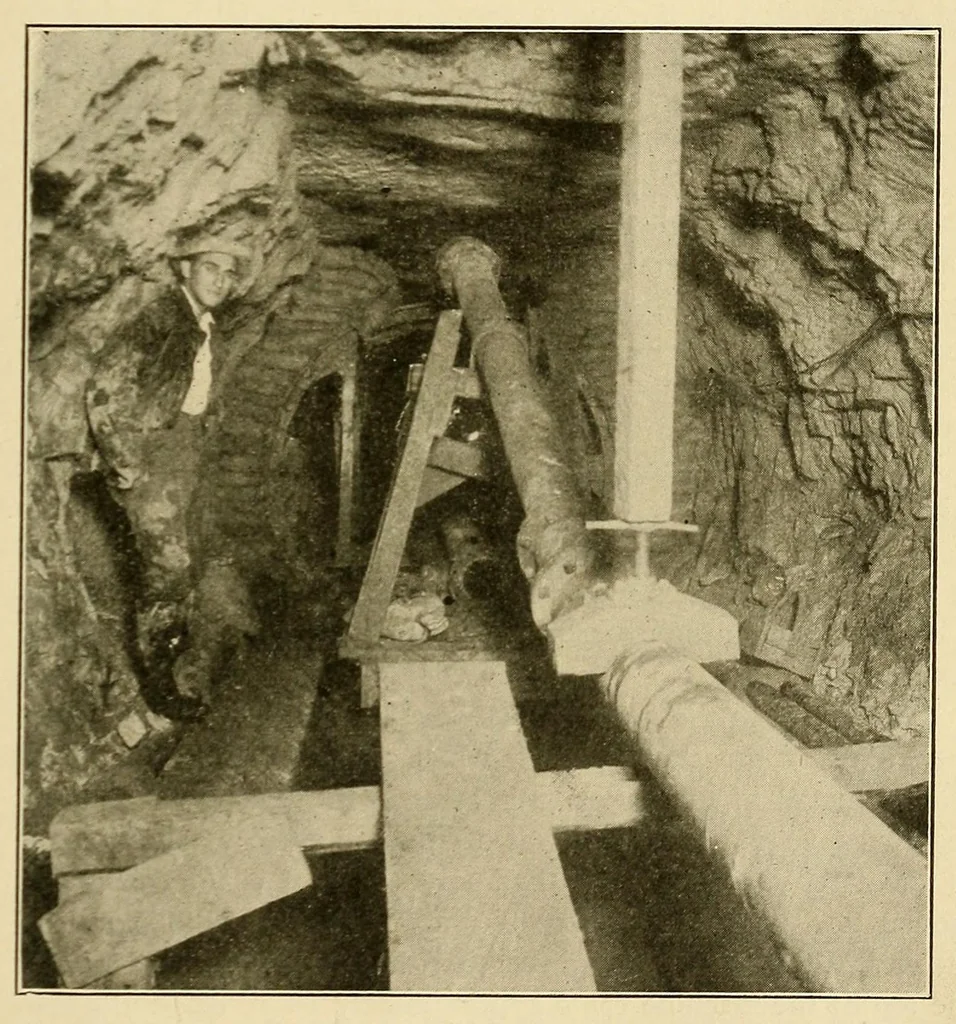

set of forms 36 ft. long was set up approximately 70 ft. from the west end of the shore tunnel, the 8 in. discharge pipe with flange couplings was laid extending through the forms and approximately 70 ft. of intake was laid. After this section of the invert was placed the track was laid at the… … 4. Showing- Bracing- of Discharge Pipe and Elbow Connections Fis leading to top of arch, also type of Bulkhead used. and this type of bulk-head proved to be very effective. The dis- charge pipe was laid along the tunnel from the mixer to within 20 ft. of the forms and here 22l/2° elbow was…
