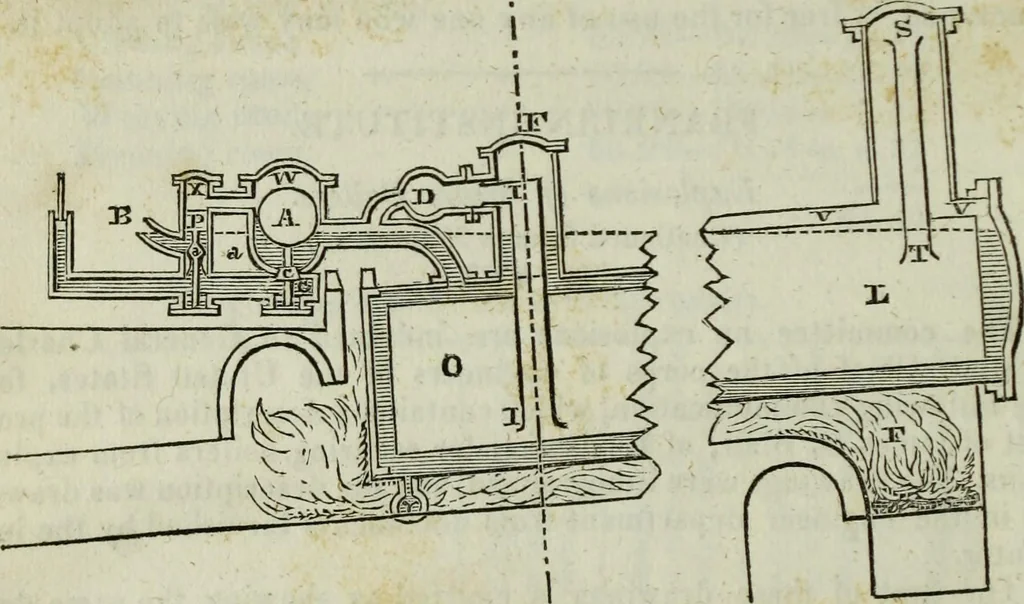

one and a fourth gallons, which would be equal to2125 gallons of steam at a temperature of 350°, or equal to a pres-sure of more than 120 lbs. to the superficial inch. The drawing represents six three feet boilers, which are less thanthe common size for steam-boats of the larger class;… … Proposed Remedy. Fig. 2 represents a longitudinal section through the middle ofthe centre boiler and hydrostat. The rear end of the boiler is de-pressed below the front half its diameter, for which reason theback end of the boiler, and for some distance towards the furnace isfilled with water as…
