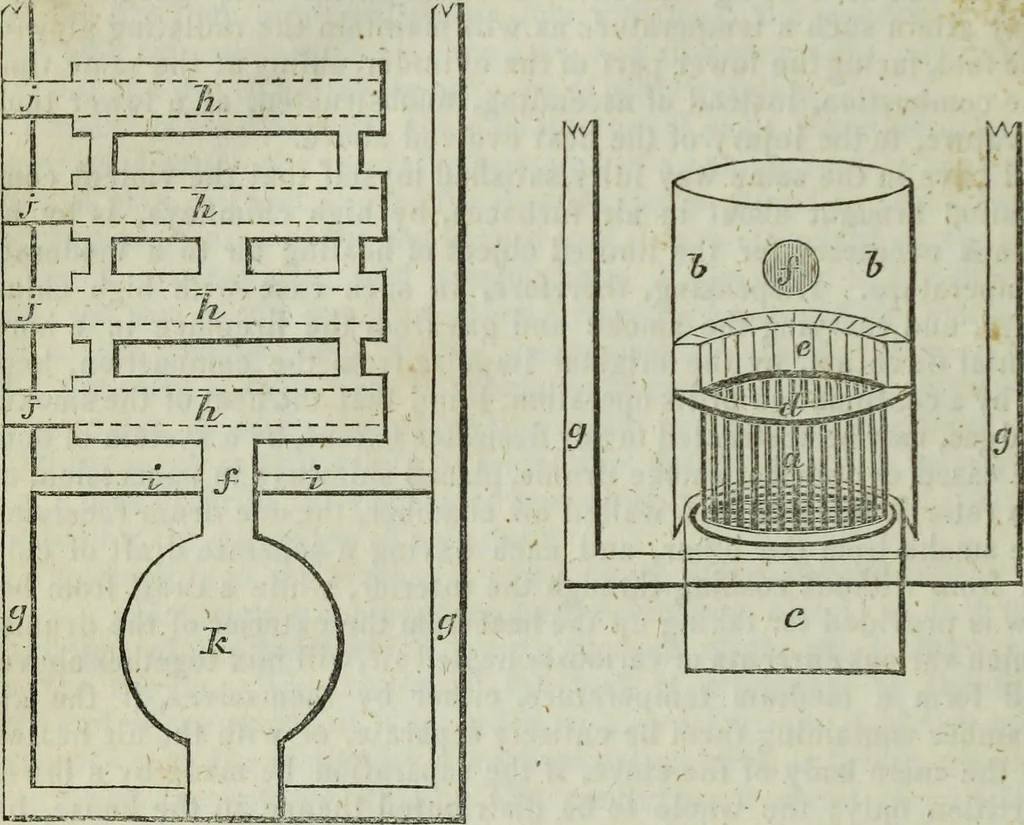

in the house by pipes, or flues, fromthe air chamber. And with regard to the fireplace itself, I claim as my invention the 396 Steinhauers Heating Apparatus. particular application of a basket grate, by suspending it in a cylinderor air-heater, of larger diameter, so as to allow the air to play… … 0, The basket grate.b b, The cylinder. c, The ash pit. d, The ring or flanch. e, A range of fire bricks./, The smoke pipe. g g, The walls of the air chamber. h /«, The double cased cylindric drums; i £, The partition wall. j j, The pipes to convey the air into the interior of the drums.k9 The…
