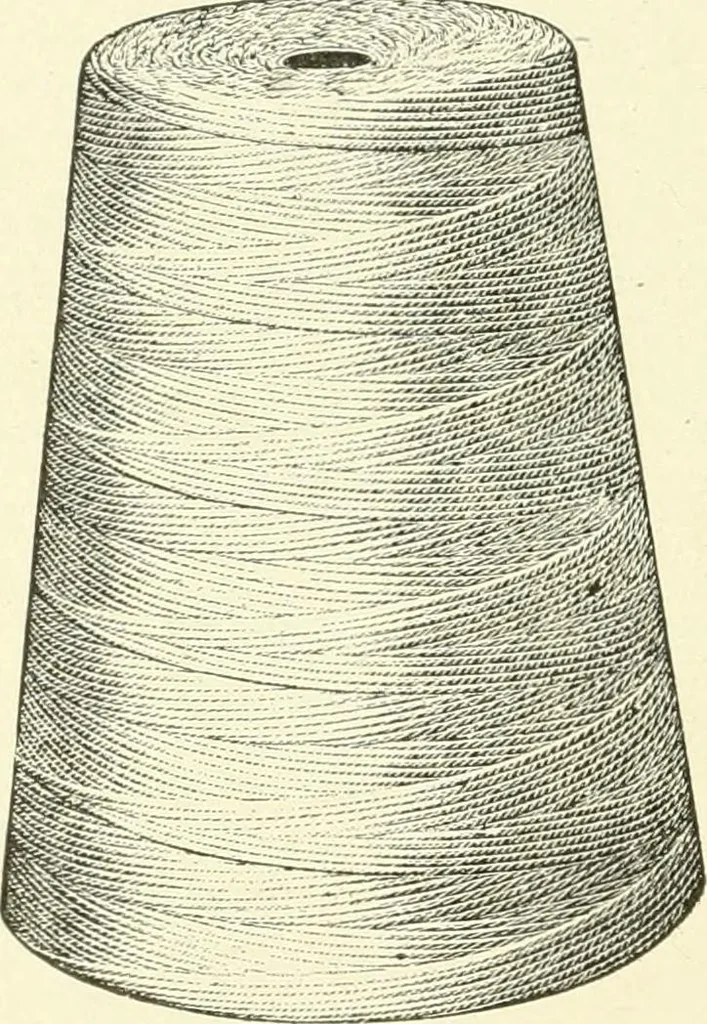

th a uniform density.. When the windingspindle stops, the tension blades are automatically thrown apart,and the tension remains open until the spindle is again started. Gainer Mechanism (Fig. 37). The upper, or winding spindle,being driven at a certain speed, is connected by means of a belt o witha… … Fie Universal Cone. 104 KNITTING 91 guide is moving from one end of the cone to the other and returningto its original position, the top shaft revolves exactly six times, whenthe diameter of the two pulleys is exactly the same. A micrometer adjustment is provided by means of a split ring ron the…
