Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 159

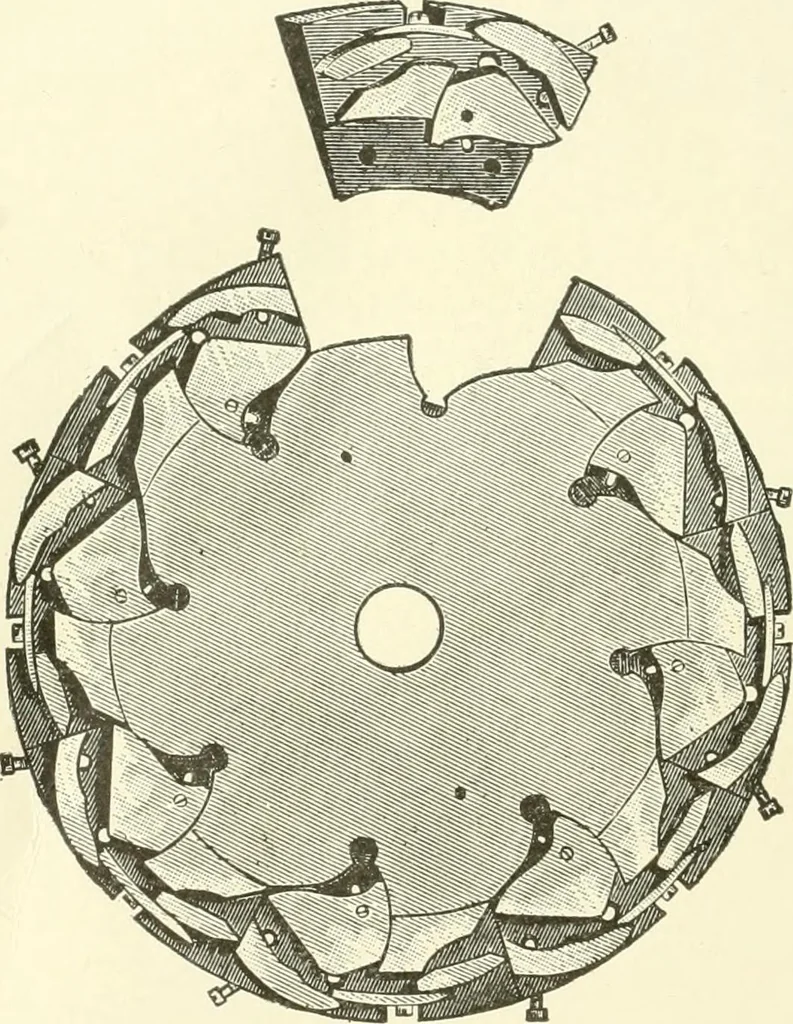

ck. 141 128 KNITTING The worm gear is loose on the driving roll and is provided witha clutch, Fig. 66, feathered on the driving roll in such a manner thatwhen the clutch is pulled away and disconnected from the worm gear,the rolls are at rest, leaving the worm gear free to revolve on the shaft.The… … Fig. 71. Cam Dial with Section Removed. the take-up plate. A fabric roll is often used in place of the can, andthe fabric rolled up as shown in Fig. 67. Head and Cam Ring and Cam Dial Plate. Fig 68 repre-sents a plain body machine head, without the needle cylinder andneedle dial, and more clearly…
Knitting machines
