Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 189

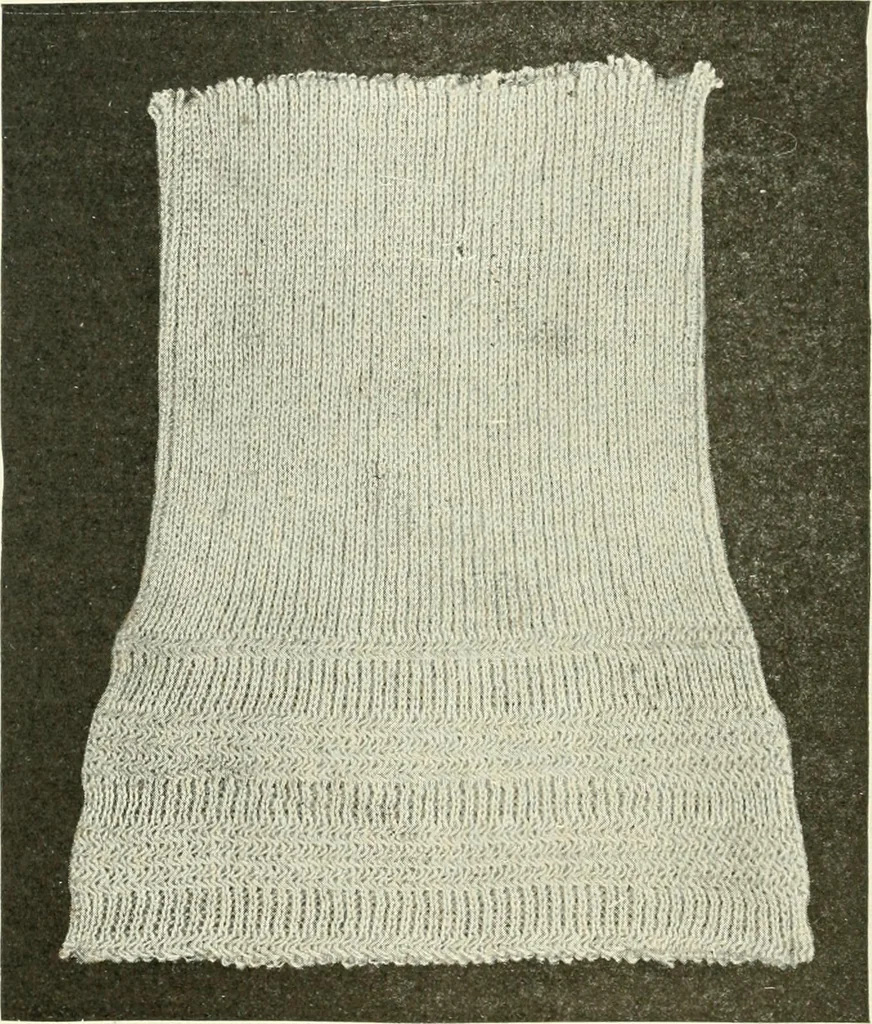

Fig. 89. Cuff-Racked Back. 169 154 KNITTING Fig. 92 represents the sweater machine tipped partly over, inorder to give a more comprehensive-view of the top of the machine,and shows why the name Flat Head Circular Knitting INIachinewas so distinctively applied to it. Method of Driving. The bed plate… … Fig. 90. Circular Ribbed Sweater Collar, Racked Courses. sion A to furnish bearings for the main shaft, which is provided withtight and loose pulleys, and has a bevel gear, or pinion, which engagesthe teeth of the dial cam plate A* to rotate it. The bolt A^ on theyoke A enters a link A, wdiich is…
Knitting machines
