Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 21

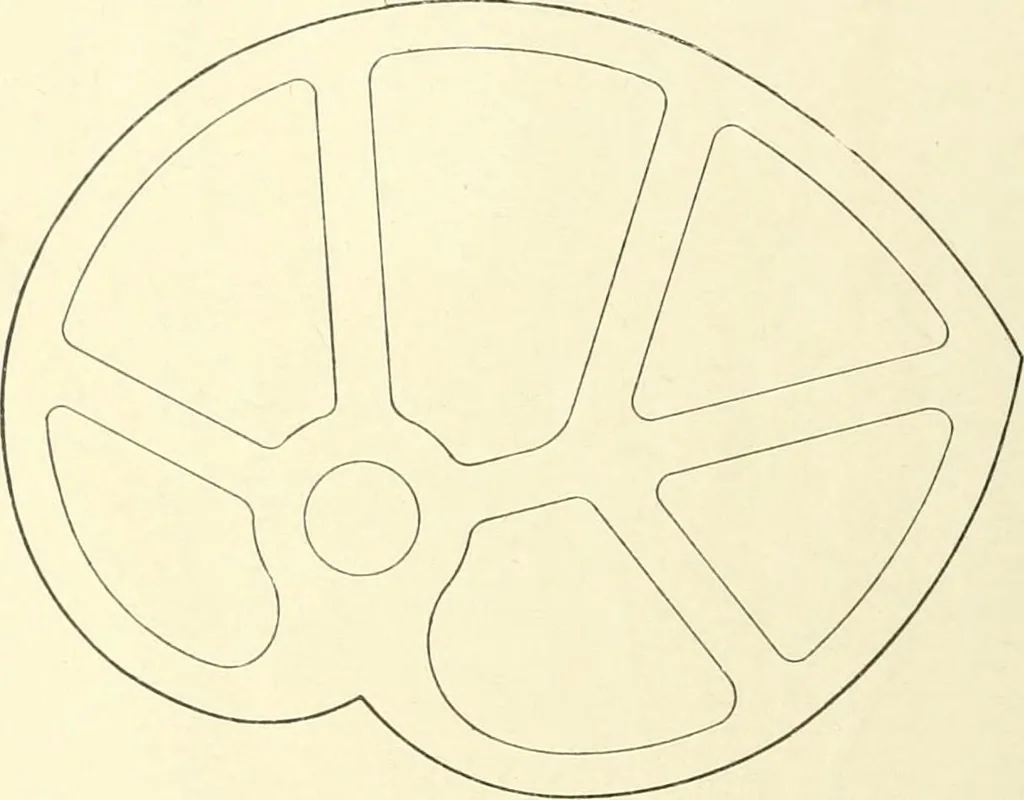

when lifting the rail. The upright rods to the building 17 10 KNITTING. rail are near each end of the rail; the rockshaft with lifting rodlever and ball counterweight is consequently duplicated at theopposite end of the machine, the rockshaft being connected withrod and levers. The upi-ight rods… … Fig. (i. Heart Cam. The Spindles are properly stepped and run in oil with a capclosely fitted to the spindle and covering the step to keep out gritand lint. If the caps are kept in position the steps will last along time. About eight inches above the step rail just beneaththe board covering is the…
Knitting machines
