Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 216

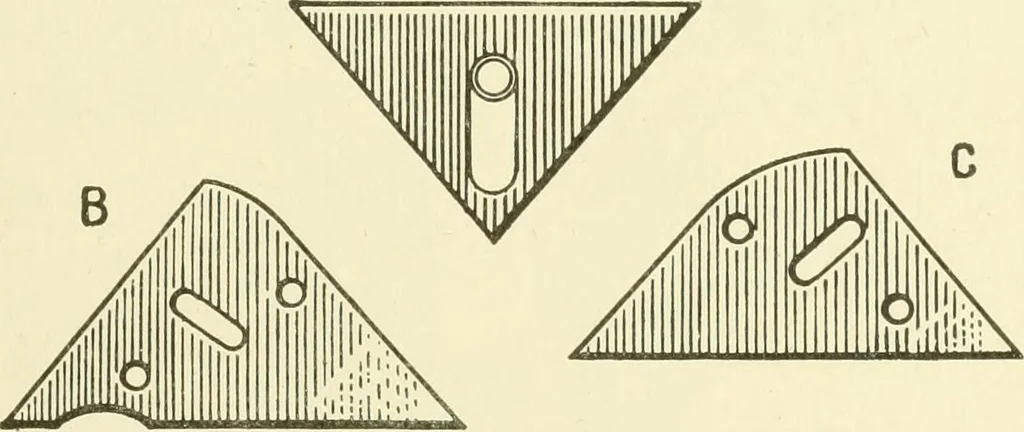

time draw-ing down on the back part of the fabric with the left hand. Now putthe large triangular wire over the work, draw it down well betweenthe rows of knitting, and attach to it a weight-stand and one-poundweight. Remove the two-pound weight from the set-up comb, leavingthe weight-stand only.… … Fig. 104. Cams. A, V Cam. B, Wing Cam.C, Cardigan Cam for Common Lock. the length of the heel, draw down on back part of it with the left hand. Then lessen the weight on back, leaving only the weight-stand.Next take a worsted needle, threaded with a piece of yarn, and pass theneedle up from below…
Knitting machines
