Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)

American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 392

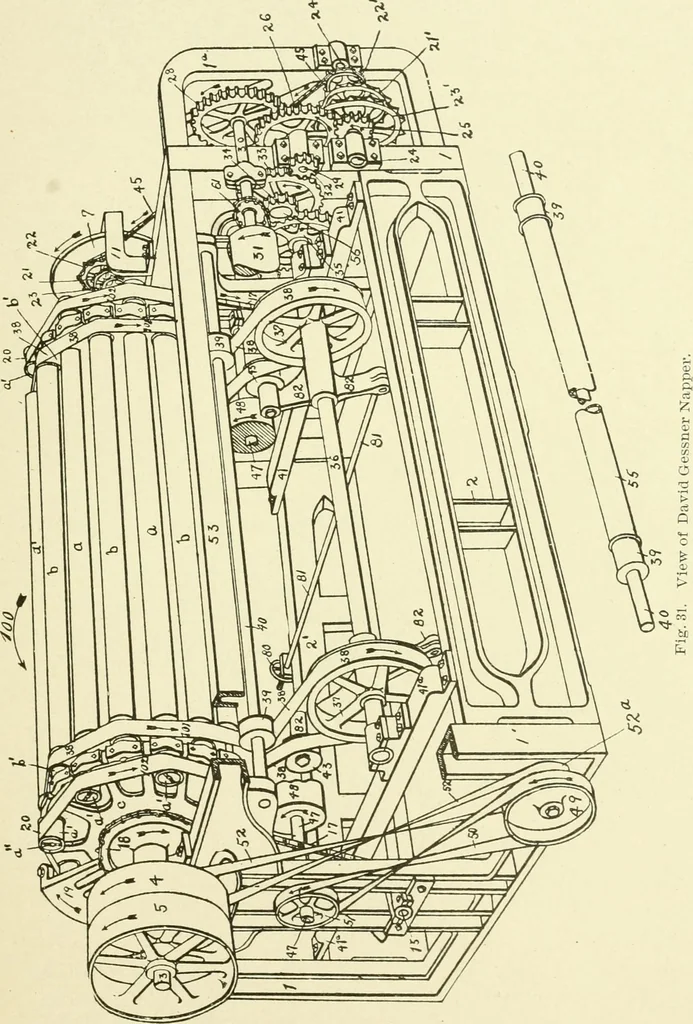

An illustration from Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care, 1909, leaf 392 — fast to the spiders 19, which carry the belt 20,which passes around the series of pulleys a, a on the ends of theshafts a^ of the workers a. By raising or lowering the belt 8 anydesired speed may be given to the workers a for increasing or decreas-ing their napping capacity independent of the speed… … 359 64 KNIT GOODS FINISHING The mechanism for driving the cloth-feed rolls, of which 31 is one,is as follows: 21, 22 and 23 are sprocket-wheels fast to the main shaft.21, 22, and 23 are corresponding sprocket-wheels fast to the

Knitting machines
