Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 58

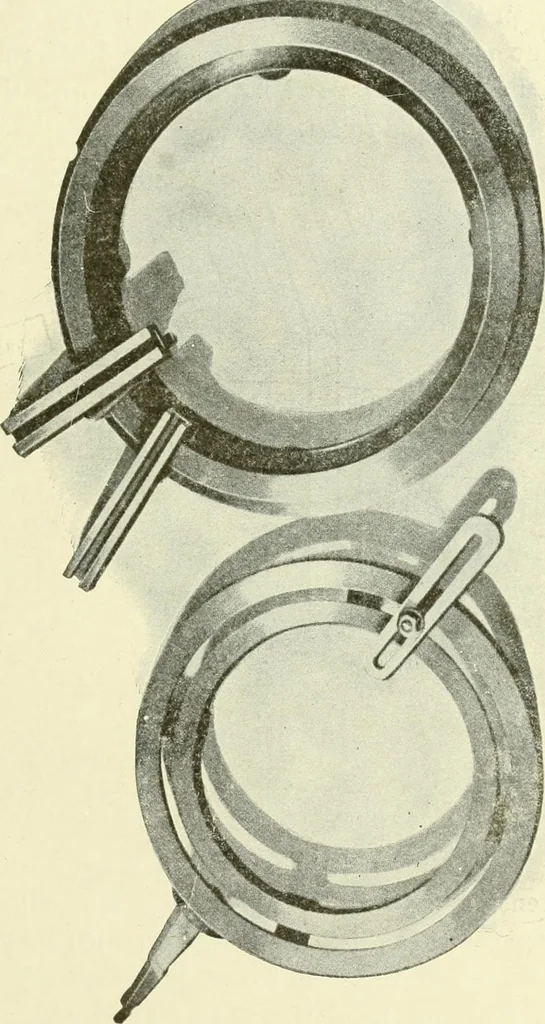

loth v^^hile being knitted, and is a most important factor inproducing good cloth with a minimum of broken needles, detaildrawing is given in this diagram. The crank connection 32, is attached to tlie upper end of theconnecting rod 31 ; on the other connecting rod 31, is a cylindrical 50 KNITTING.… … Fig. 19. Outside Circles. when the crank actuated by bevel gear 11, on shaft 10, lifts thespring connecting rod mechanism. Spring 33, is so arranged be-tween washer 29, fastened to the upper end of one of the rods 31,and link washer 28, fastened to the lower end of the other nxl. 51 40 KNITTING.…
Knitting machines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
