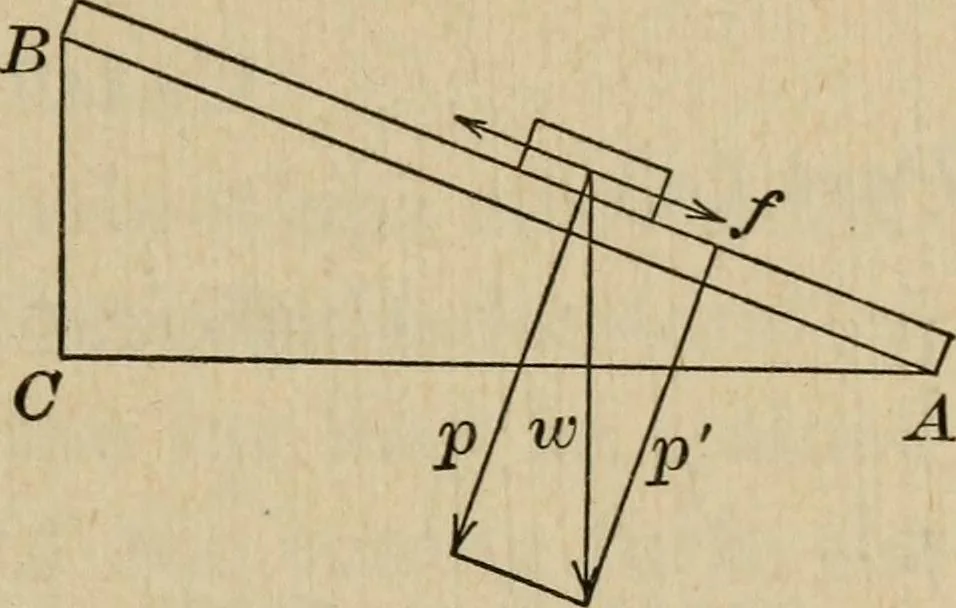

Fig. 46. be raised gradually until the unloaded block will justslide down with uniform motion if the board is constantlytapped with the finger. This angle is called the limiting COEFFICIENT OF FRICTION 115 … Fig. 47. angle of friction. Referring to Fig. 46, A 0 and BO shouldbe measured. When a body rests on an inclined plane, its weight, w,is resolved into two component forces. One of these, p, isperpendicular to the plane andproduces pressure upon it.The other component / acts par-allel to the plane…
