Labor-saving looms : a brief treatise on plain weaving and the recent improvements in that line, with special reference to the Northrop looms manufactured by Draper Company, Hopedale, Mass., U.S.A (1905)
Draper, George Otis, 1867-1923, Draper Company · [Hopedale, Mass. : Draper Company] · leaf 59

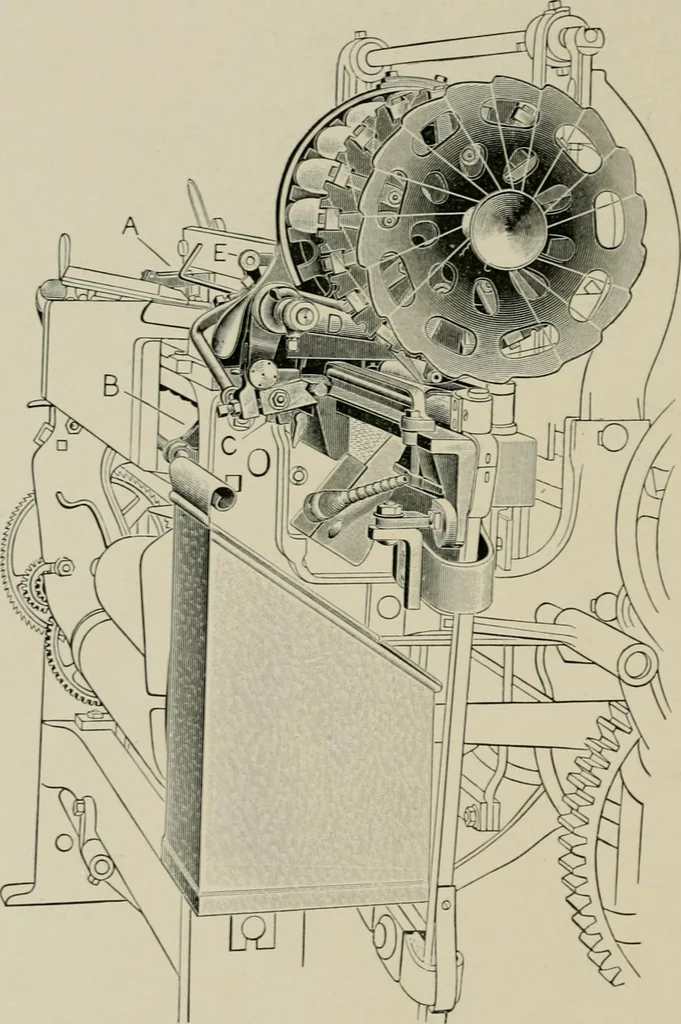

DETAIL OF CONNECTION Between the filling fork which detects the absence of fillingand a No. i cop hopper or magazine. 56 … ILLUSTRATION OF HOPPER ACTION ON B MODEL LOOM. 57 A is the filling-fork which detects absence of filling, and through the usual catch and vibrator gives action to rod B con-trolling latch C. When latch is raised it will be in contact with a hunter onthe lay, thus forcibly depressing the transferrer…
