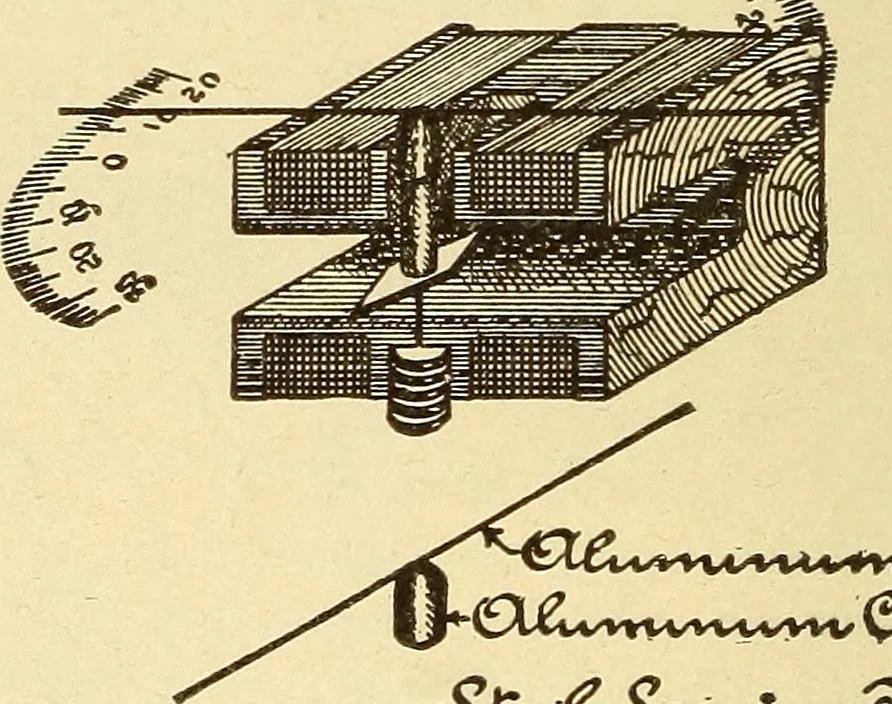

eedle before itmoves at all. Whenthe needle is deflect-ed to 90 degrees,or at right anglesto the wire, it is inthe maximumposition of the cur-rents field. Thevalue of the deflec-tion is dependentupon the currentflowing through thecoil, but is not pro-portional to the current; that is, if one… … foS£<x*^j^*J0& ^OAX^vx^XU^UthJU/. Fig. 154. -Construction of Students DetectorGalvanometer. GALVANOMETERS. 163 it considerably, but as the angle the needle makes with thecoil increases, a much greater magnetic force is required.For example, it requires a greater force to deflect the…
