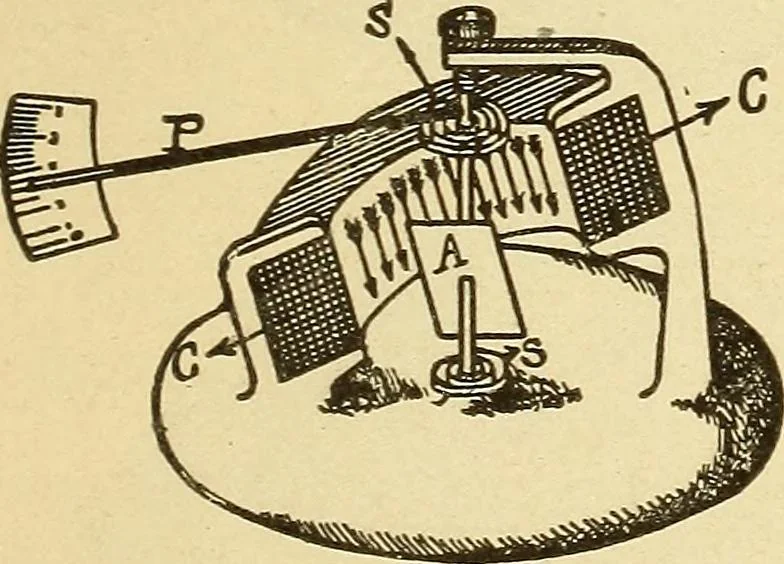

lines of force indicated by thedirection of the arrows. Theturning of the shaft causes thepointer, P, to sweep over thescale. The coils for large sizes ofinstruments are generally woundwith a few turns of flat insulatedcopper ribbon having a very low resistance. These metersare adapted for use with… … Fig. 193.—Construction of In-clined Coil Ammeter. 204 PRACTICAL ELECTRICITY. shown in Fig. 194, and interior views in Figs. 195 and 196,A permanent horseshoe magnet, M, is fitted with soft iron pole pieces, P P, Fig,197, between which astationary cylinder ofsoft iron, C, is sup-ported by a brass…
