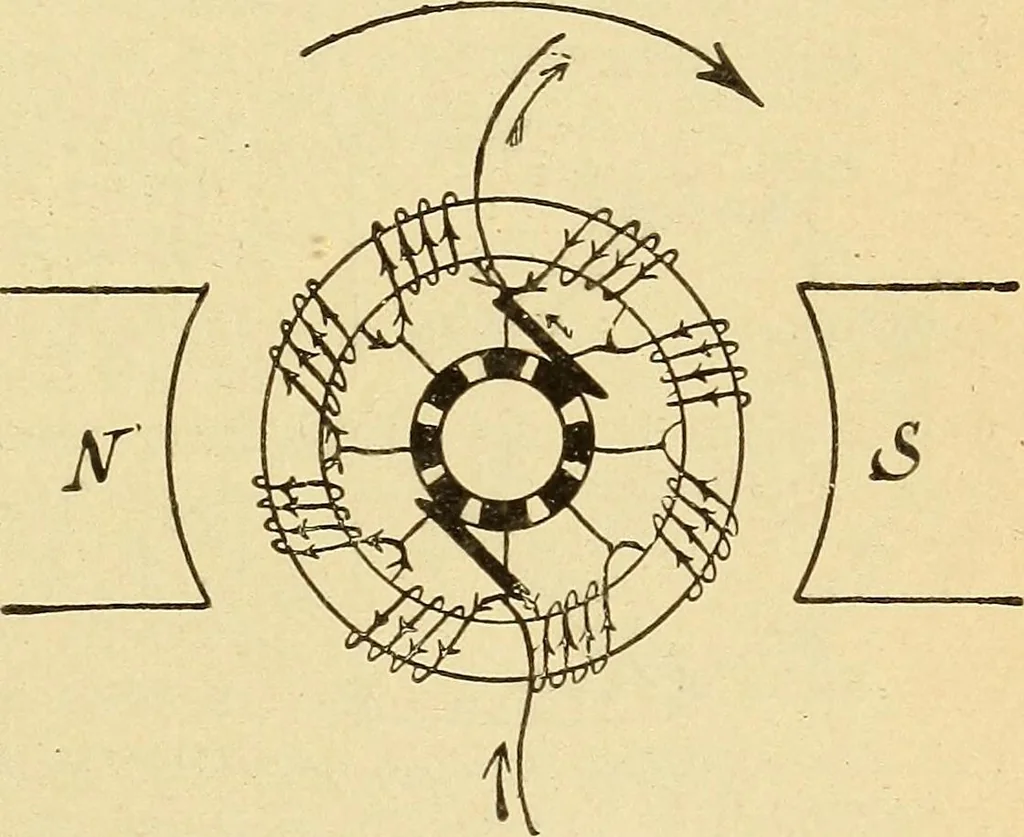

Fig. 323.—Four-Coil Gramme Ring Direct Current Armature. Whenflows inpositive brush, and returns from the external circuit to the DYNAMO ELEC7RIC MACHINES. … Fig. 324.—Eight-Coil Gramme Ring DirectCurrent Armature. lower or negative brush, circulating up again through eachhalf of the armature. The windings in the halves of thearmature are in parallel with the brushes. As each coil passesfrom under the influence of the N-pole and comes intoaction under…
