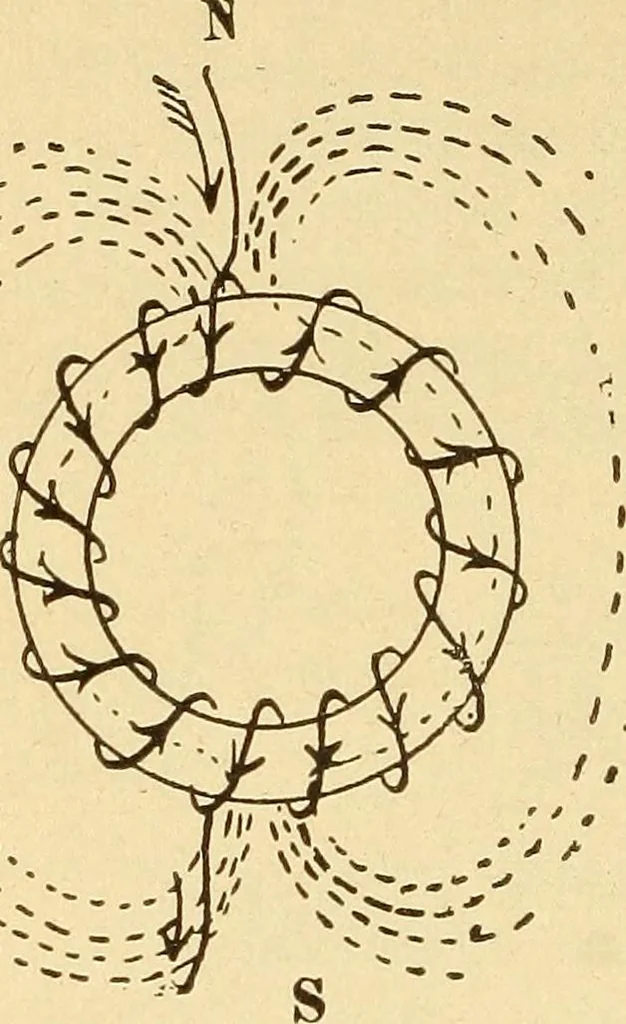

ar as useful elec-trical work. The heat so gen-erated also heats the copperwires wound upon the arma-ture core, increasing their resis-tance and the C2R loss, so thatstill more energy is wastedwhich does not appear as use-ful energy. This is calledhysteresis loss in a dynamo.337. Armature… … Fig. 347.—Magnetic Field Produced by Current Circulating Through the Armature. flowing in the direc-tion indicated, fromthe armature windingsdepicted in Fig. 347,a N and a S-pole areproduced at diametri-cally opposite points,Where the current en-ters and leaves thearmature by thebrushes, just as in…
