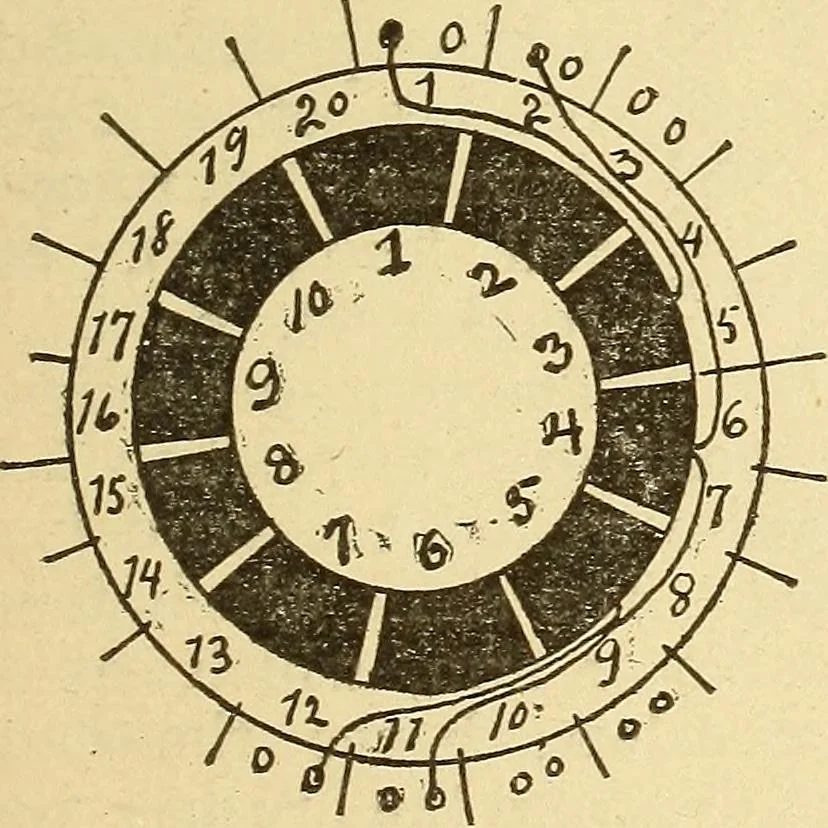

first set on the commutatorat the opposite ends of thediameter, in bipolar dynamos,or diametrically opposite. Thisis usually done by countingthe number of bars in the com-mutator and then properlydividing them. Suppose thata commutator has 20 bars, thetoe of the brush should thenbe set to the… … Fig. 353.—Armature Winding. 366 PRACTICAL ELECTRICITY. divided into four equal parts for a 4-pole machine, and so on.Suppose a commutator of a 4-pole dynamo to consist of 144segments, then the toes of the brushes would be set to theinsulation line between 144 and 1; 36 and 37 ; 72 and 73,and 108…
