Lessons in practical electricity; principles, experiments, and arithmetical problems, an elementary text-book (1903)
Swoope, Coates Walton. [from old catalog] · New York, D. Van Nostrand company · leaf 406

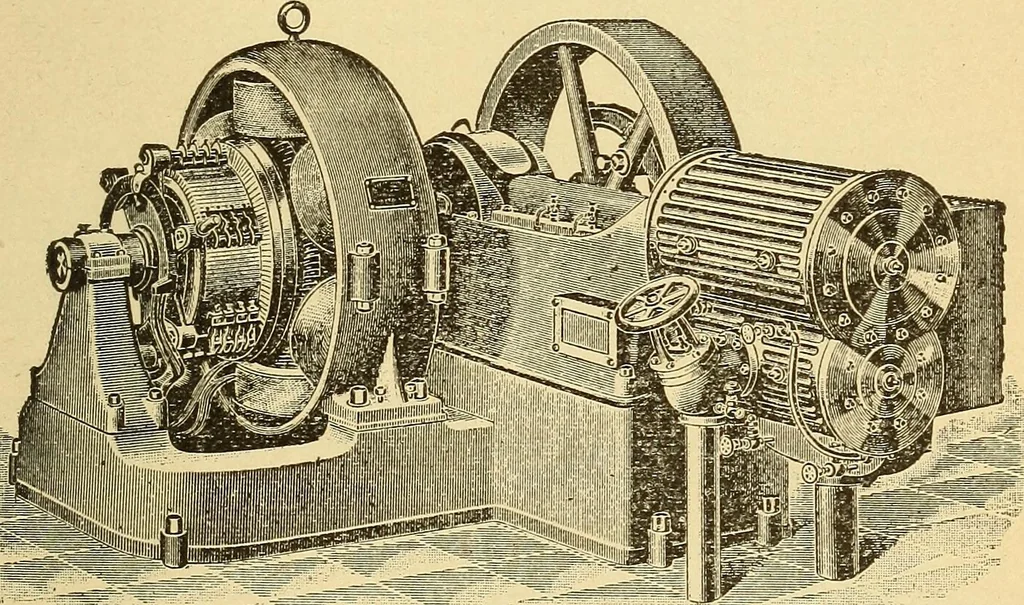

shunt can then be regu-lated to send sufficient current around the series coils to pro-duce the desired compounding. In a short shunt compoundwound generator the shunt field is subjected to a highervoltage than in the long shunt connections. The E. M. F.applied to the shunt field in the latter case… … Fig. 369.—100-K. W. 125-Volt Multipolar Compound Wound D. C. DynamoDirect-connected to a Steam Engine. Output at brushes, 800 amperes at 125 volts. Speed, 270 revolutions. Poles, 6. Approxi-mate horse power required to drive generator, 150 H. P. Approximate weight:armature and commutator, 2,950…
