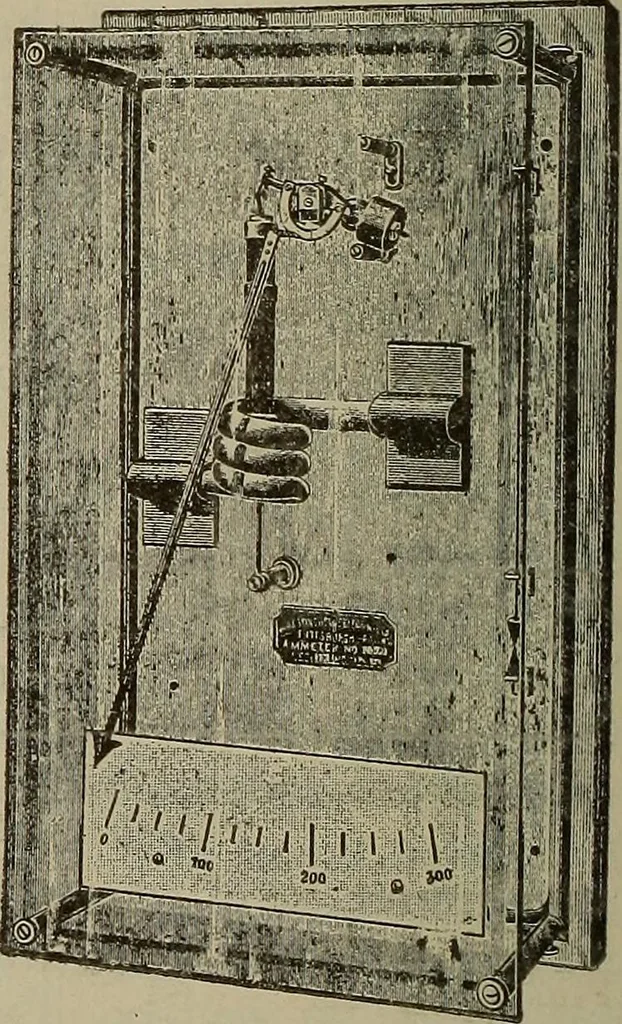

ings over the scale, which is calibrated to read in amperes. A plumb-bob indicates when the instrument is properly leveled. The instrument depicted illus-trates a 0 to 300 scale, and can be calibrated for a larger capacity, say 0 to 400 amperes, by sliding the counterweight along the beam toward… … Fig. 191.—Balance Beam Gravity-Ammeter—Westinghouse Type. AMMETERS. 203 ance of the instrument being about .0001 ohm. The instru-ment may be calibrated for an alternating or direct currentcircuit. 207. Thomson Inclined Coil Ammeter. —In many typesof ammeters, beside tlie above, the magnetic body is…
