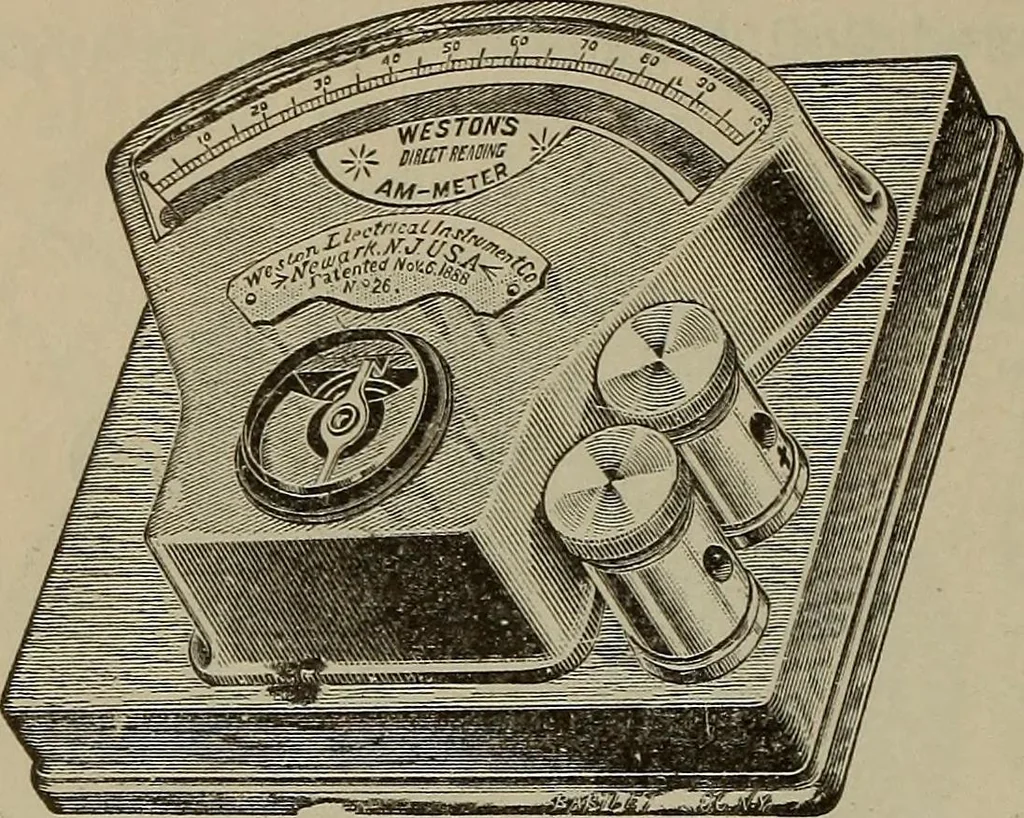

aft causes thepointer, P, to sweep over thescale. The coils for large sizes ofinstruments are generally woundwith a few turns of flat insulatedcopper ribbon having a very low resistance. These metersare adapted for use with alternating or direct currents. 208. Weston Ammeter.—The construction of… … Fig. 194.—Weston Ammeter with Self-Contained Shunt. shown in Fig. 194, and interior views in Figs. 195 and 196.A permanent horseshoe magnet, M, is fitted with soft iron pole pieces, P P, Fig,197, between which astationary cjdinder ofsoft iron, C, is sup-ported by a brass pieceextending across…
