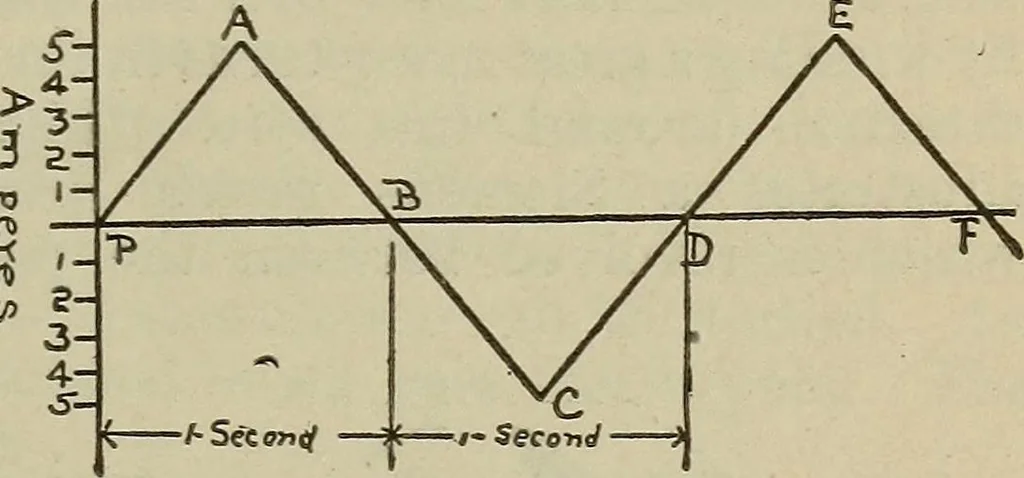

Fig. 310.- -Graphical Eepresentation of anAlternating Current. sen ting intervals of time. The vertical line, AM, at rightangles to it is divided into distances representing units ofcurrent, the current being in a positive direction when indi-cated above PK, and negative, when below PK. When the… … Fig. 311.—Graphical Representation of anAlternating Current. switch is closed the current immediately rises to its fullstrength of 5 amperes, or from P to A, and 5 amperes aremaintained constant in a positive direction for one second,A to B. When point B is reached at the end of the firstsecond the…
