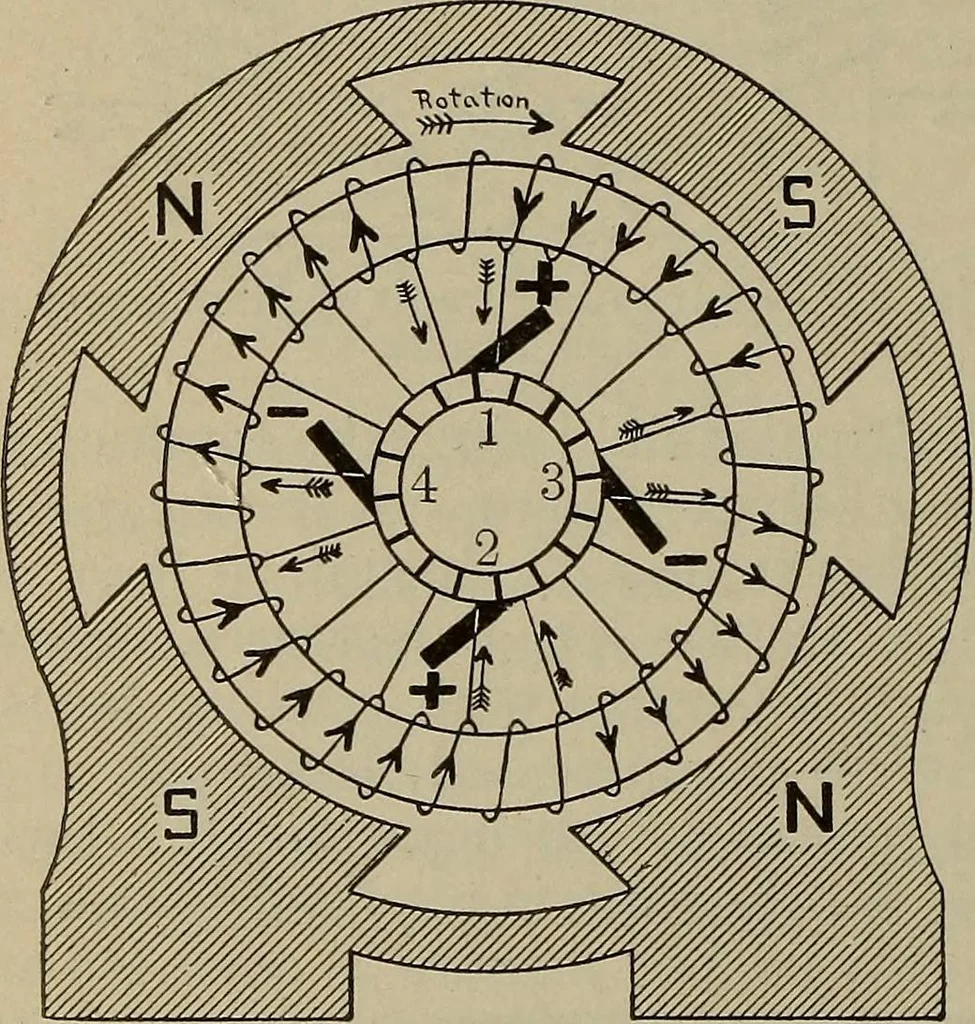

s in the windings under the upper N and S-polesare opposed to each otherand flow to the externalcircuit by the + brush 1and back to this halfof the armature by —brushes 3 and 4. At thesame instant the opposedcurrents in the lowerwindings flow to the ex-ternal circuit by -|- brush 2 and return to… … Fig. 359.—Direction of Current Through the WindinfiS of a Ring Armature Rotating in a Four-Pole Field. the neutral space. In this form of winding there is no differ-ence of potential between the + brushes, so that they are con-nected in parallel, as are also the negative brushes, and thento the…
